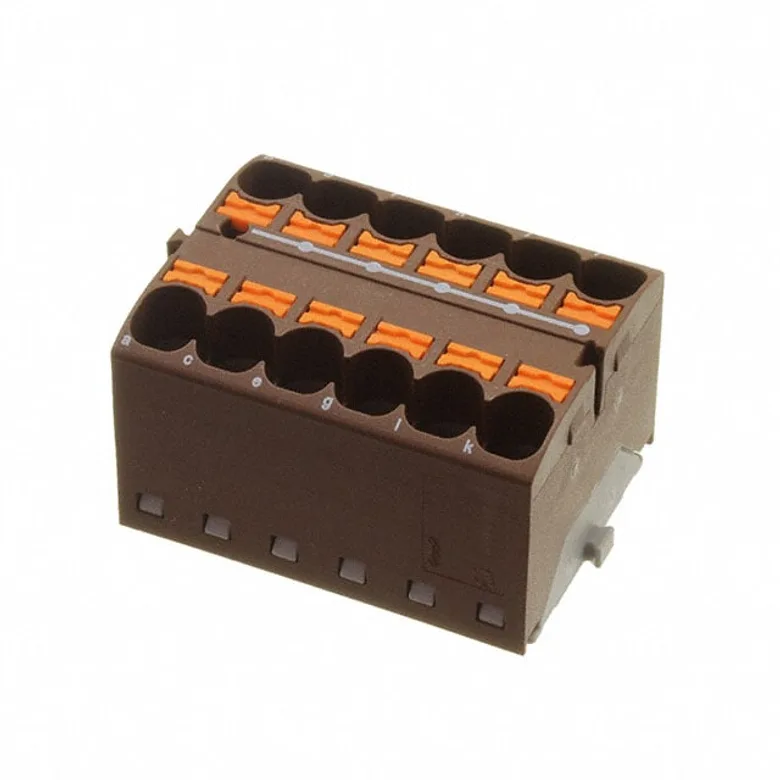

Phoenix Contact 3273822
Manufacturer
Manufacturer Product Number
3273822
Description
TERM BLK 12POS BROWN
Manufacturer Standard Lead Time Contact us
Detailed Description
TERM BLK 12POS BROWN
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Phoenix Contact
Number of Positions
12
Operating Temperature
-60°C ~ 130°C
Termination Style
Push In, Spring
Features
Block of 6
Mounting Type
Direct Mount
Length
1.126" (28.60mm)
Material - Insulation
Polyamide (PA), Nylon
Material Flammability Rating
UL94 V-0
Number of Levels
1
Terminal - Width
36.9mm
Wire Gauge or Range - AWG
10-24 AWG
Wire Gauge or Range - mm²
0.2-6mm²
Height (Max)
0.854" (21.70mm)
Housing Color
Brown
Stripping Length
10mm ~ 12mm
Type
Middle
Current - UL
32 A
Current - IEC
32 A
Voltage - IEC
630 V
Voltage - UL
600 V
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
3273822
9765367
277-18354-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1
Packaging Quantity Unit Price Ext Price
1 123.000 ₫ 123.000 ₫
123.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
123.000 ₫
123.000 ₫
MOQ 1 · Order multiple 1
