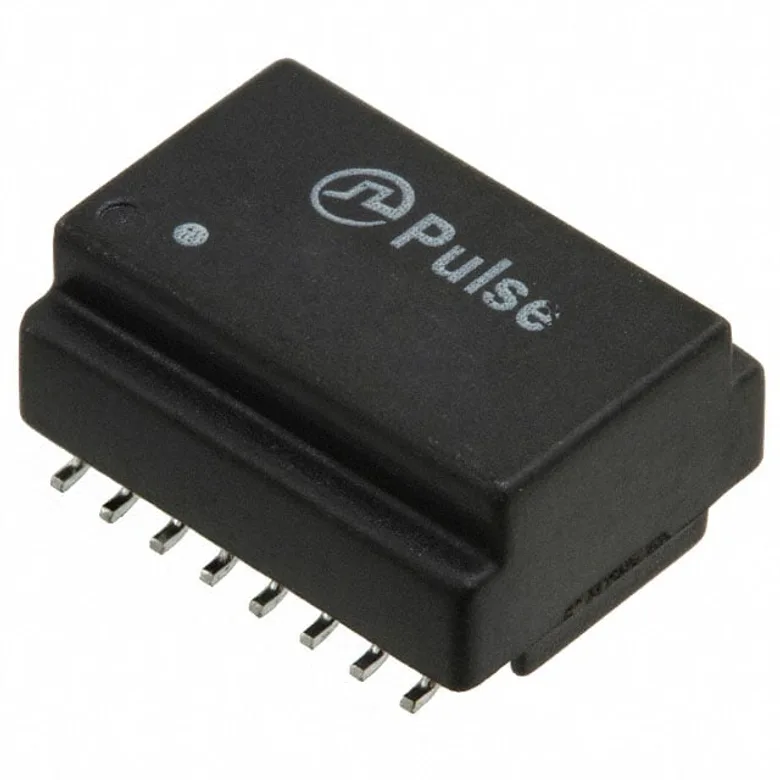

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics 23Z91SMFNLT
Manufacturer
Manufacturer Product Number
23Z91SMFNLT
Description
XFRMR AUI ETHERNET LAN 16SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
100µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
2.4VµS
Size / Dimension
0.450" L x 0.265" W (11.43mm x 6.73mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.215" (5.46mm)
Inductance
100µH
Weight
0.03 oz (0.85 g)
Documents & Media
Resource Type
Link
Datasheets
Drawings
Related Documents
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
23Z91SMFNLT
4291973
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
23Z91SMFNL
XFRMR AUI ETHERNET LAN 16SOIC
