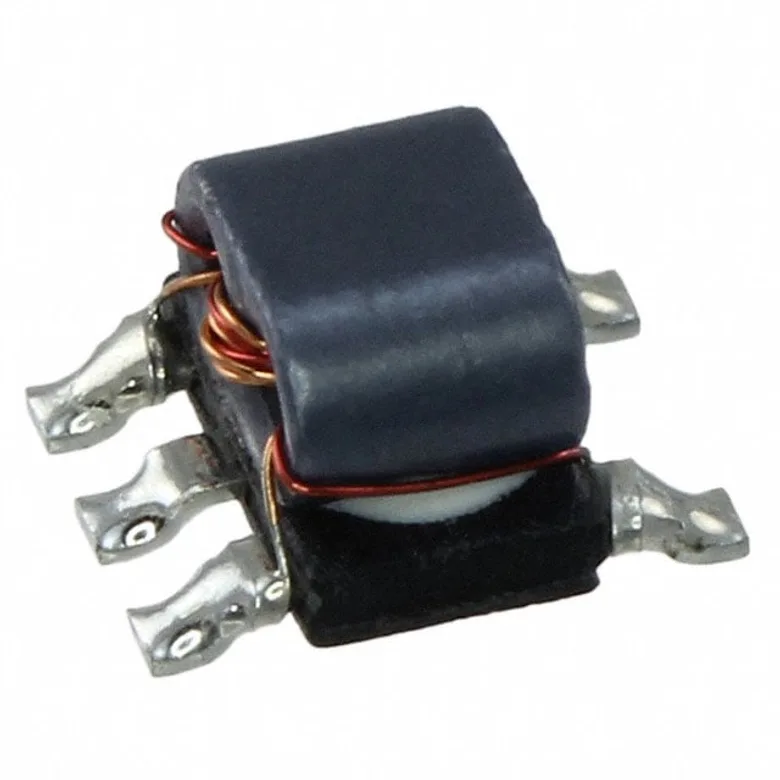

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics C2580NL
Manufacturer
Manufacturer Product Number
C2580NL
Description
PULSE XFMR 1:1
Manufacturer Standard Lead Time Contact us
Detailed Description
Pulse Transformer 1:1 Surface Mount
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.169" L x 0.106" W (4.30mm x 2.70mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.118" (3.00mm)
Inductance
-
Weight
-
Documents & Media
Resource Type
Link
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
C2580NL
5436359
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
