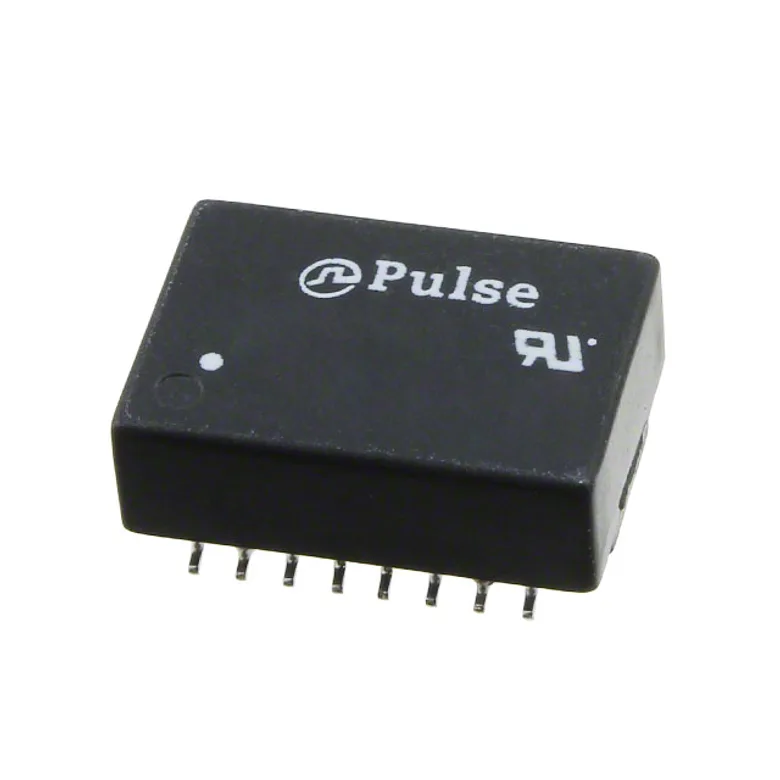

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics E2023FNL
Manufacturer
Manufacturer Product Number
E2023FNL
Description
XFRMR LAN ISOL 10BASET 1:2.5 SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
200µH Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:2.5CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:2.5CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.498" L x 0.350" W (12.65mm x 8.89mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.200" (5.08mm)
Inductance
200µH
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
E2023FNL
4291845
553-2214-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 408
Packaging Quantity Unit Price Ext Price
1 139.000 ₫ 139.000 ₫
139.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
139.000 ₫
139.000 ₫
10
126.000 ₫
1.260.000 ₫
40
118.000 ₫
4.720.000 ₫
80
114.000 ₫
9.120.000 ₫
120
112.000 ₫
13.440.000 ₫
280
108.000 ₫
30.240.000 ₫
520
105.000 ₫
54.600.000 ₫
1,000
102.000 ₫
102.000.000 ₫
MOQ 1 · Order multiple 1
