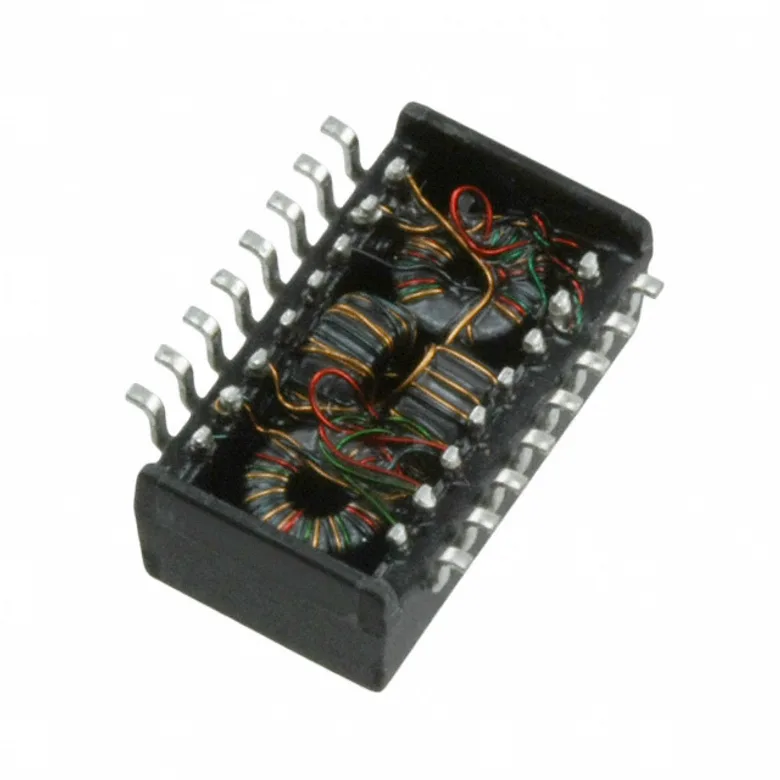

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics E2023NL
Manufacturer
Manufacturer Product Number
E2023NL
Description
XFRMR LAN ISOL 10BASET 1:2.5 SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR LAN ISOL 10BASET 1:2.5 SMD
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:2.5CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.495" L x 0.280" W (12.57mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.210" (5.33mm)
Inductance
200µH
Weight
0.03 oz (0.85 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
E2023NL
2265435
553-1629-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 603
Packaging Quantity Unit Price Ext Price
1 125.000 ₫ 125.000 ₫
125.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
125.000 ₫
125.000 ₫
10
113.000 ₫
1.130.000 ₫
40
106.000 ₫
4.240.000 ₫
80
103.000 ₫
8.240.000 ₫
120
101.000 ₫
12.120.000 ₫
280
97.000 ₫
27.160.000 ₫
520
94.000 ₫
48.880.000 ₫
1,000
91.000 ₫
91.000.000 ₫
MOQ 1 · Order multiple 1
