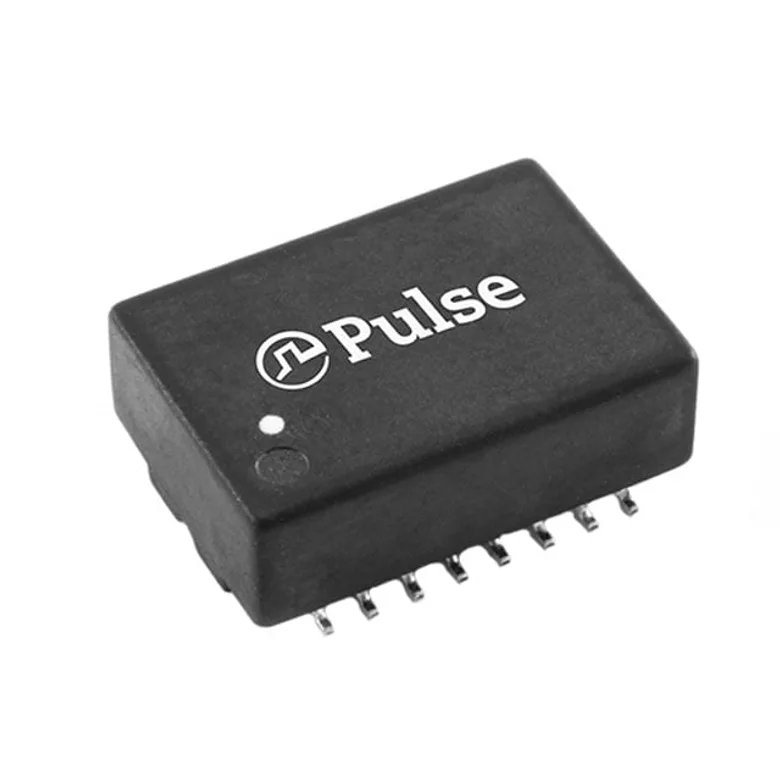

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics EX2024FNL
Manufacturer
Manufacturer Product Number
EX2024FNL
Description
PULSE XFMR 1CT:2.5CT 1CT:1CT
Manufacturer Standard Lead Time Contact us
Detailed Description
35µH, 200µH LAN 10 Base-T Pulse Transformer 1CT:2.5CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10 Base-T
Turns Ratio - Primary:Secondary
1CT:2.5CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.498" L x 0.350" W (12.65mm x 8.89mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.200" (5.08mm)
Inductance
35µH, 200µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
EX2024FNL
4291846
553-2215-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,089
Packaging Quantity Unit Price Ext Price
1 133.000 ₫ 133.000 ₫
133.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
133.000 ₫
133.000 ₫
10
120.000 ₫
1.200.000 ₫
40
113.000 ₫
4.520.000 ₫
80
110.000 ₫
8.800.000 ₫
120
108.000 ₫
12.960.000 ₫
280
104.000 ₫
29.120.000 ₫
520
101.000 ₫
52.520.000 ₫
1,000
98.000 ₫
98.000.000 ₫
MOQ 1 · Order multiple 1
