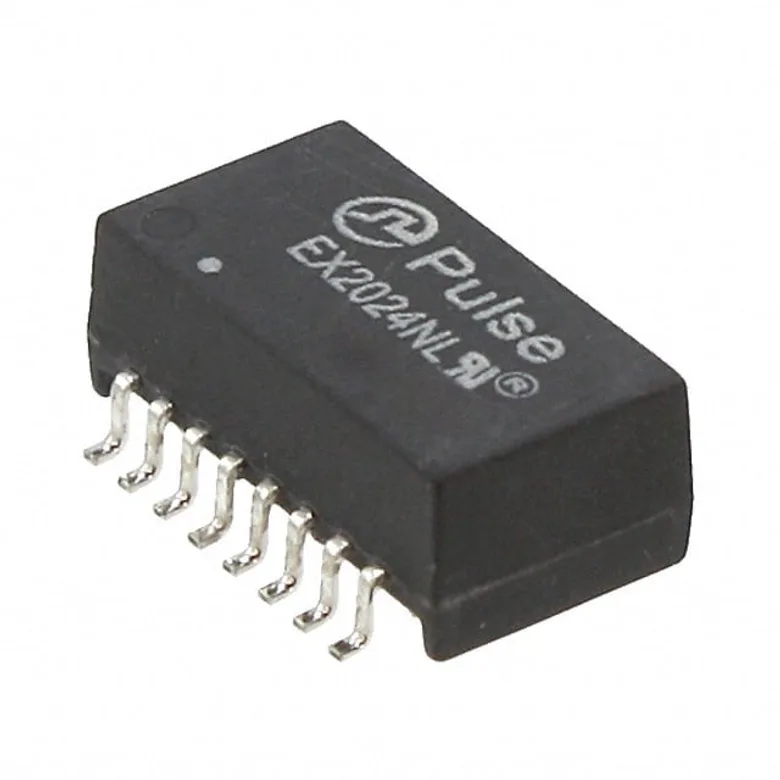

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics EX2024NL
Manufacturer
Manufacturer Product Number
EX2024NL
Description
XFRMR LAN ISOL 10BASET 1:2.5 SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR LAN ISOL 10BASET 1:2.5 SMD
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:2.5CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.285" W (12.70mm x 7.24mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.210" (5.33mm)
Inductance
350µH
Weight
0.03 oz (0.85 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
EX2024NL
2265844
553-1830-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 371
Packaging Quantity Unit Price Ext Price
1 144.000 ₫ 144.000 ₫
144.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
144.000 ₫
144.000 ₫
10
130.000 ₫
1.300.000 ₫
40
122.000 ₫
4.880.000 ₫
80
118.000 ₫
9.440.000 ₫
120
116.000 ₫
13.920.000 ₫
280
112.000 ₫
31.360.000 ₫
520
109.000 ₫
56.680.000 ₫
1,000
105.000 ₫
105.000.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
EX2024NLT
XFRMR LAN ISOL 10BASET 1:2.5 SMD
94.000 ₫ Pulse Electronics
Substitutes
EX2024NLT
XFRMR LAN ISOL 10BASET 1:2.5 SMD
94.000 ₫ Pulse Electronics
