Image shown is representative only. Exact specifications should be obtained from the product datasheet.

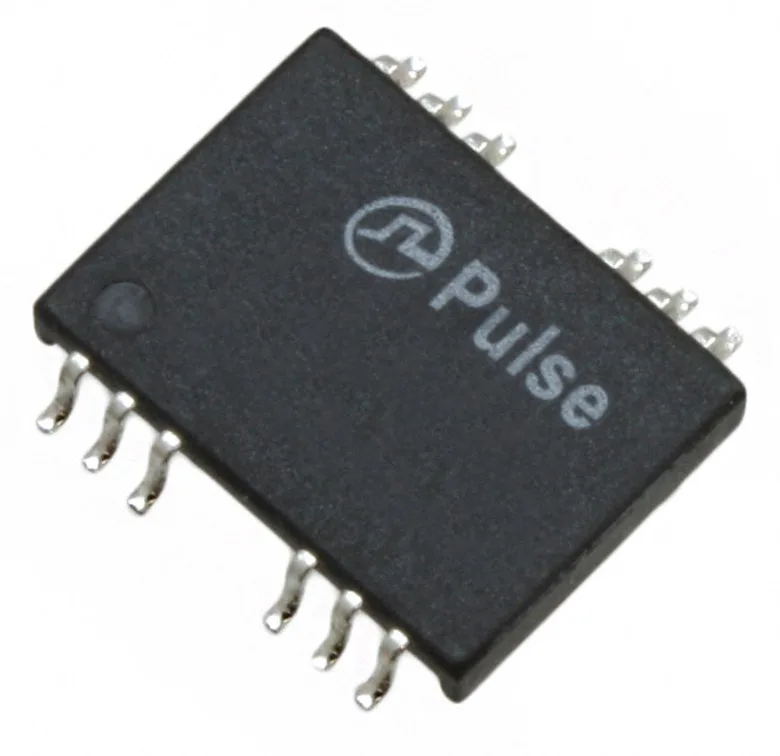

Pulse Electronics H0022NL
Manufacturer
Manufacturer Product Number
H0022NL
Description
MODULE PC CARD SNGL LAN 12PCMCIA
Manufacturer Standard Lead Time Contact us
Detailed Description
LAN Pulse Transformer 1CT:1CT Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.465" L x 0.340" W (11.81mm x 8.63mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.085" (2.16mm)
Inductance
-
Weight
0.01 oz (0.28 g)
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
H0022NL
1036936
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
