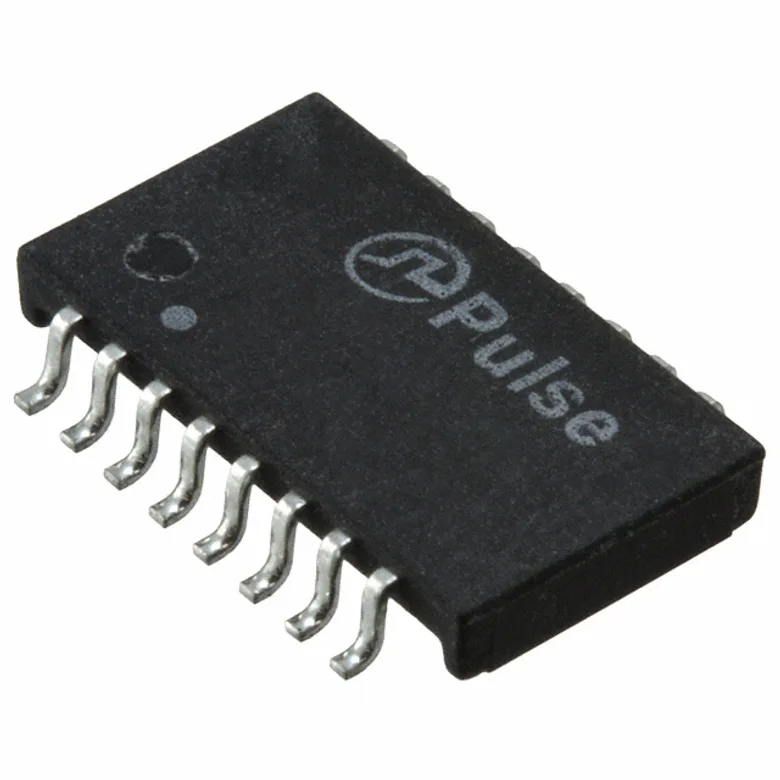

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H0056NLT
Manufacturer
Manufacturer Product Number
H0056NLT
Description
XFRMR MODULE 1PORT 1:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR MODULE 1PORT 1:1 10/100
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.504" L x 0.280" W (12.80mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.088" (2.24mm)
Inductance
300µH
Weight
0.01 oz (0.28 g)
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
H0056NLT
2265568
H0056NLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 80.000 ₫ 80.000 ₫
80.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,000
80.000 ₫
160.000.000 ₫
MOQ 2,000 · Order multiple 2,000
