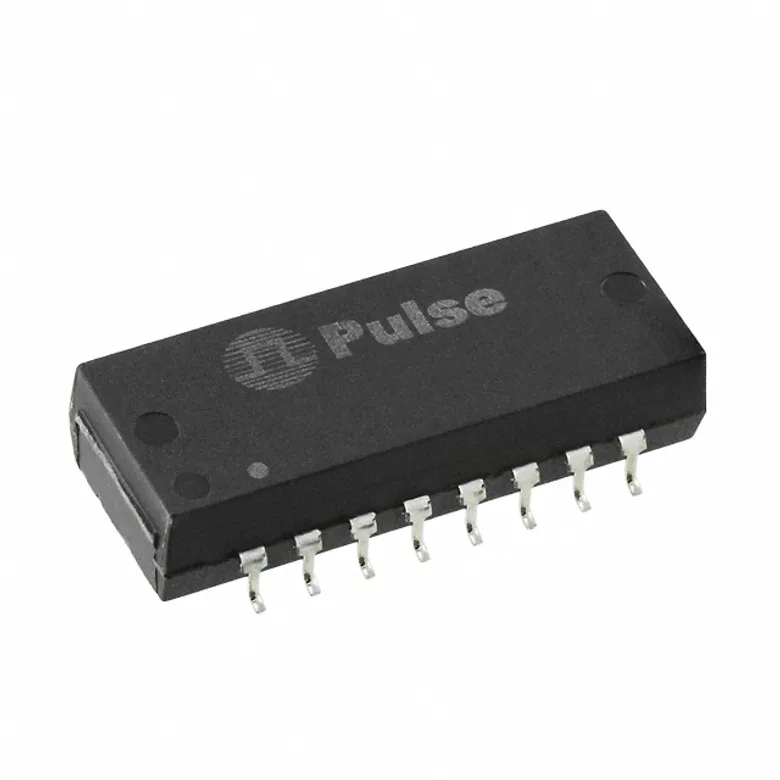

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1086NL
Manufacturer
Manufacturer Product Number
H1086NL
Description
XFRMR MODULE 1PORT 1:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR MODULE 1PORT 1:1 10/100
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
1.000" L x 0.390" W (25.40mm x 9.91mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.245" (6.22mm)
Inductance
-
Weight
0.11 oz (3.13 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H1086NL
2265820
553-1624-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 162.000 ₫ 162.000 ₫
162.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
162.000 ₫
162.000 ₫
20
142.000 ₫
2.840.000 ₫
40
138.000 ₫
5.520.000 ₫
60
135.000 ₫
8.100.000 ₫
100
132.000 ₫
13.200.000 ₫
260
127.000 ₫
33.020.000 ₫
500
123.000 ₫
61.500.000 ₫
1,000
119.000 ₫
119.000.000 ₫
MOQ 1 · Order multiple 1
