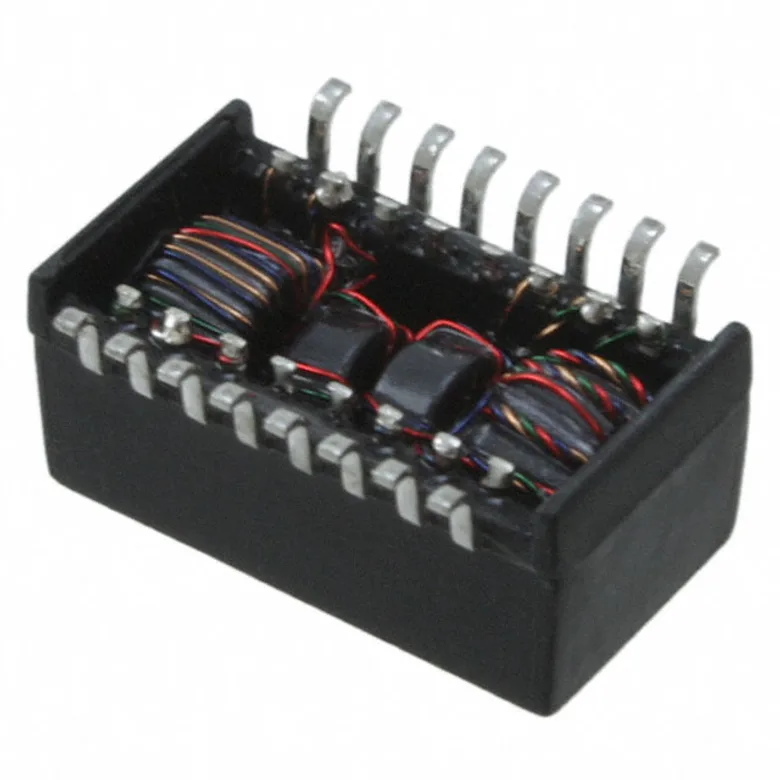

Pulse Electronics H1100NL
Manufacturer
Manufacturer Product Number
H1100NL
Description
XFRMR MAGNETIC 1PORT 2:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
Isolation and Data Interface (Encapsulated) Pulse Transformer 2:1 Transmitter, 1:1 Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
2:1 Transmitter, 1:1 Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.245" (6.22mm)
Inductance
-
Weight
0.03 oz (0.85 g)
