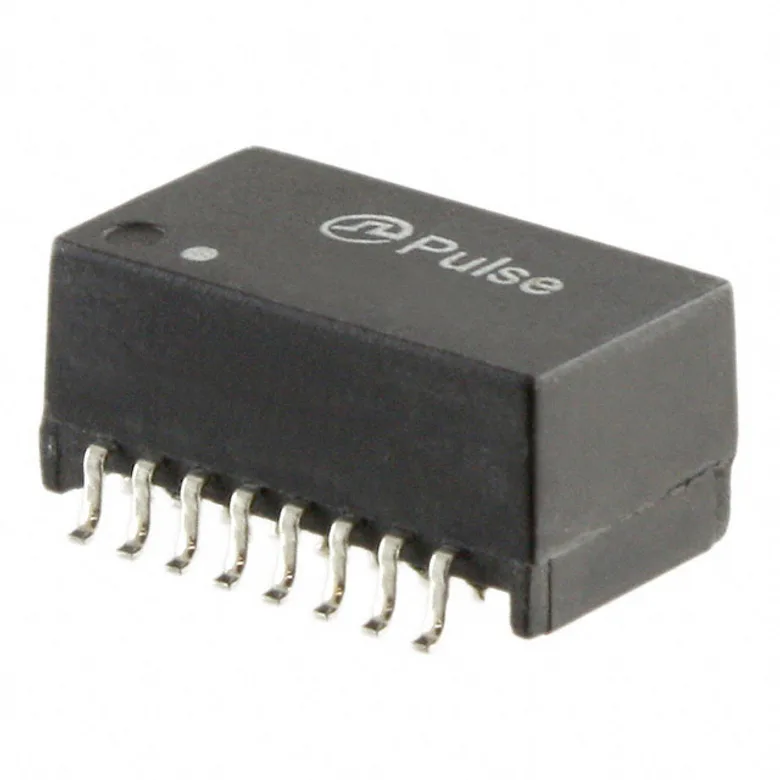

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1101NL
Manufacturer
Manufacturer Product Number
H1101NL
Description
XFRMR MAGNTC 1PORT 1.25:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR MAGNTC 1PORT 1.25:1 10/100
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1.25:1 Transmitter, 1:1 Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.245" (6.22mm)
Inductance
-
Weight
0.03 oz (0.85 g)
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
H1101NL
2265949
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
