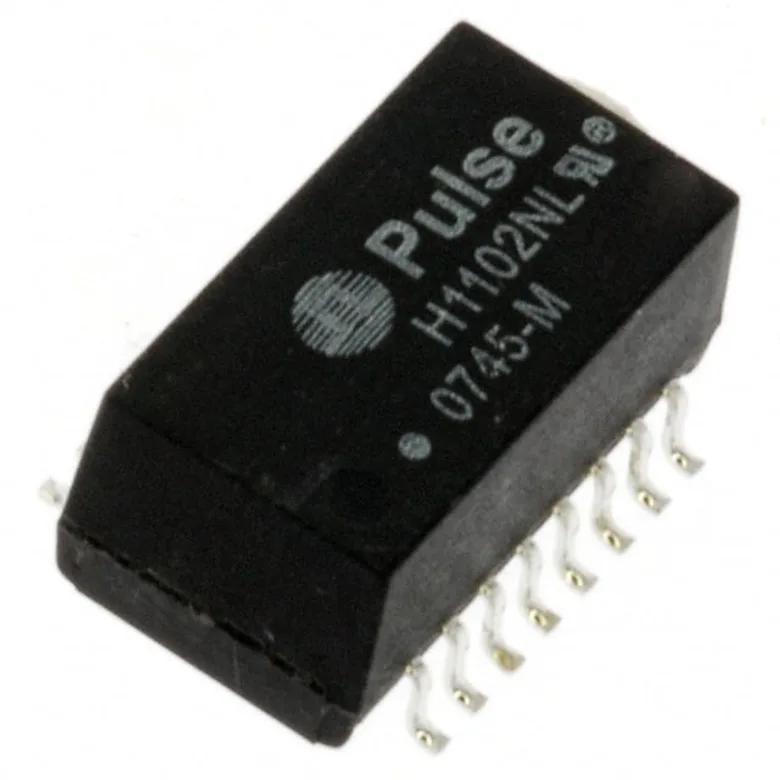

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1102NL
Manufacturer
Manufacturer Product Number
H1102NL
Description
MODULE XFRMR SGL ETHR LAN 16SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE XFRMR SGL ETHR LAN 16SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.245" (6.22mm)
Inductance
-
Weight
0.03 oz (0.85 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H1102NL
1036940
553-1323-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,976
Packaging Quantity Unit Price Ext Price
1 121.000 ₫ 121.000 ₫
121.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
121.000 ₫
121.000 ₫
10
109.000 ₫
1.090.000 ₫
40
103.000 ₫
4.120.000 ₫
80
100.000 ₫
8.000.000 ₫
120
98.000 ₫
11.760.000 ₫
280
94.000 ₫
26.320.000 ₫
520
92.000 ₫
47.840.000 ₫
1,000
89.000 ₫
89.000.000 ₫
MOQ 1 · Order multiple 1
