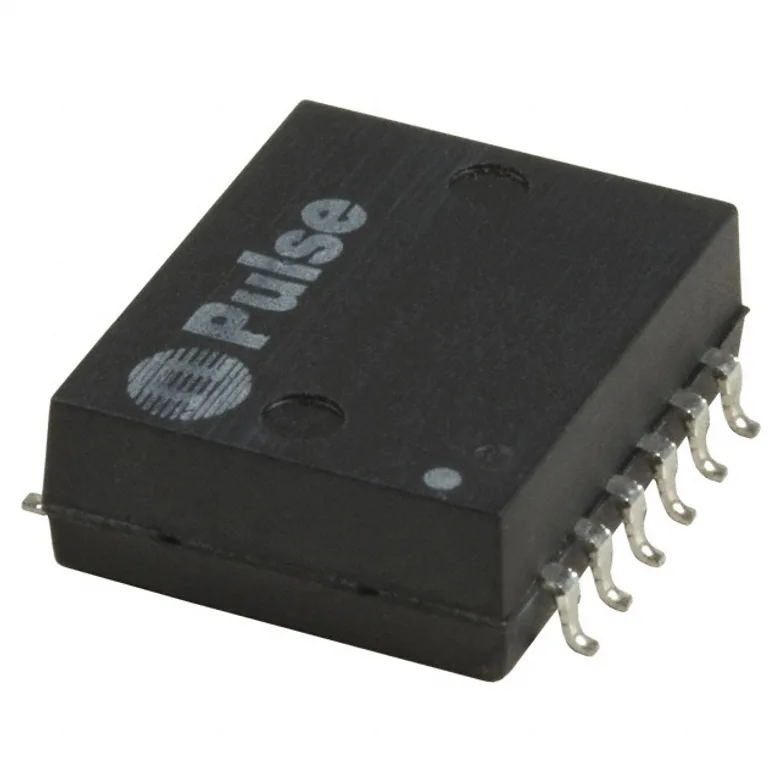

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1112NL
Manufacturer
Manufacturer Product Number
H1112NL
Description
MODULE TRANSFMR SNGL LAN 12P SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE TRANSFMR SNGL LAN 12P SMD
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.583" L x 0.460" W (14.81mm x 11.68mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.202" (5.13mm)
Inductance
-
Weight
0.06 oz (1.71 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H1112NL
1036941
553-1324-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 696
Packaging Quantity Unit Price Ext Price
1 135.000 ₫ 135.000 ₫
135.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
135.000 ₫
135.000 ₫
10
122.000 ₫
1.220.000 ₫
35
115.000 ₫
4.025.000 ₫
70
112.000 ₫
7.840.000 ₫
105
110.000 ₫
11.550.000 ₫
280
105.000 ₫
29.400.000 ₫
525
102.000 ₫
53.550.000 ₫
1,015
99.000 ₫
100.485.000 ₫
MOQ 1 · Order multiple 1
