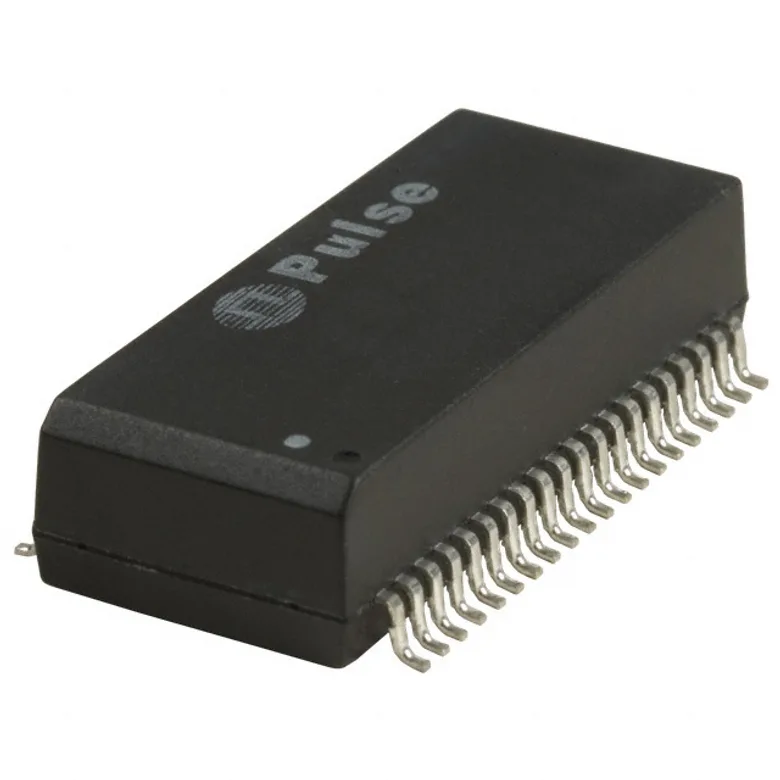

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1140NL
Manufacturer
Manufacturer Product Number
H1140NL
Description
MODULE XFRMR ETHERNET LAN 40SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
Pulse Transformer 1CT:1CT Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
1.125" L x 0.480" W (28.58mm x 12.19mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.290" (7.36mm)
Inductance
-
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
H1140NL
1287479
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
