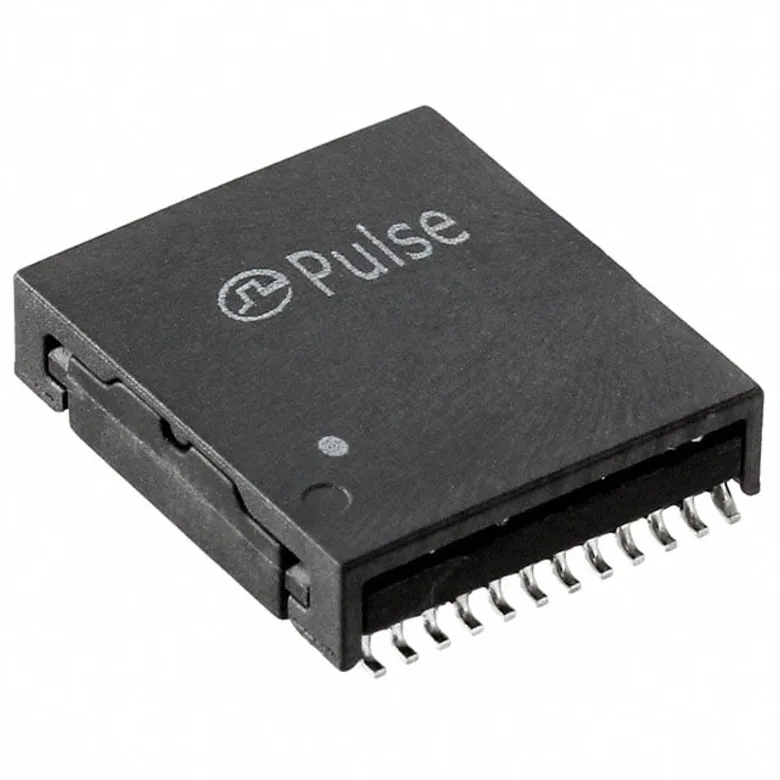

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1174FNL
Manufacturer
Manufacturer Product Number
H1174FNL
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.515" L x 0.574" W (13.08mm x 14.57mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.145" (3.69mm)
Inductance
-
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H1174FNL
4291849
553-2218-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 425
Packaging Quantity Unit Price Ext Price
1 299.000 ₫ 299.000 ₫
299.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
299.000 ₫
299.000 ₫
10
269.000 ₫
2.690.000 ₫
35
255.000 ₫
8.925.000 ₫
70
247.000 ₫
17.290.000 ₫
105
242.000 ₫
25.410.000 ₫
280
231.000 ₫
64.680.000 ₫
525
225.000 ₫
118.125.000 ₫
1,015
218.000 ₫
221.270.000 ₫
MOQ 1 · Order multiple 1
