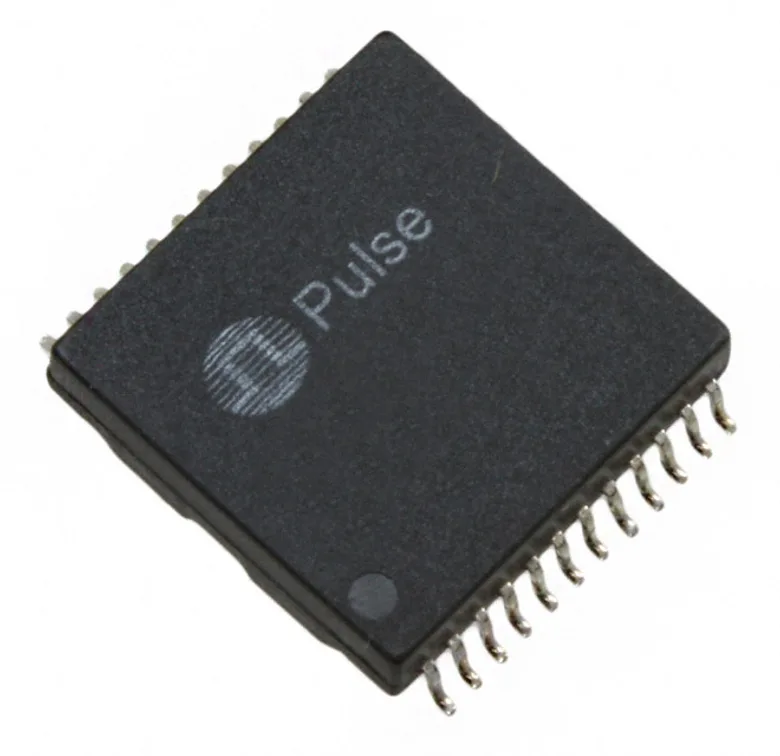

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1174NLT
Manufacturer
Manufacturer Product Number
H1174NLT
Description
XFRMR MODULE 2PORT 1:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR MODULE 2PORT 1:1 10/100
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
ET (Volt-Time)
-
Size / Dimension
0.512" L x 0.500" W (13.08mm x 12.70mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.155" (3.93mm)
Inductance
-
Weight
0.06 oz (1.71 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
H1174NLT
2265581
H1174NLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 177.000 ₫ 177.000 ₫
177.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
500
177.000 ₫
88.500.000 ₫
MOQ 500 · Order multiple 500
Alternate Packaging
H1174NL
MODULE XFRMR DUAL ETHER LAN 24P
