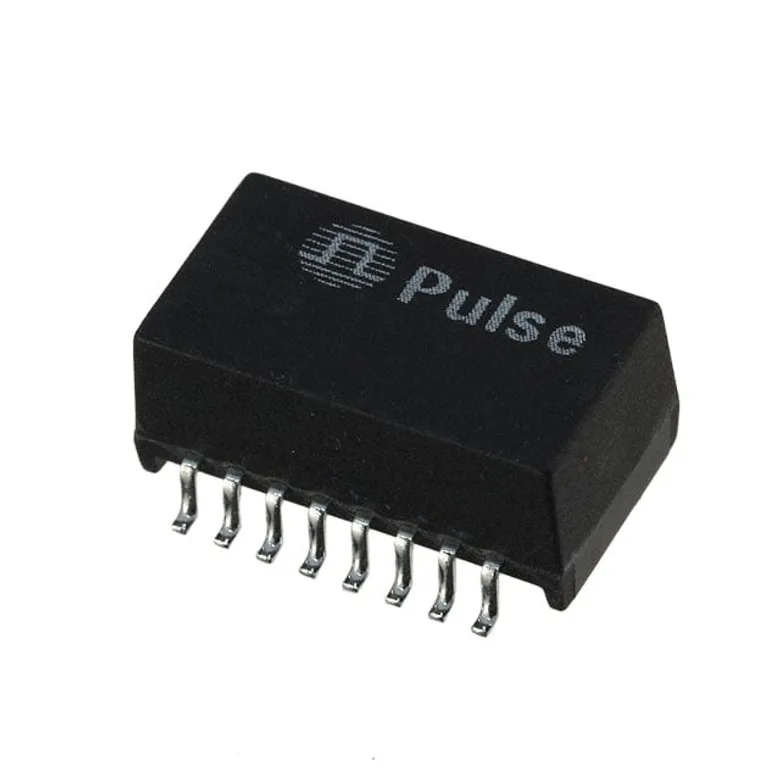

Pulse Electronics H1183NL
Manufacturer
Manufacturer Product Number
H1183NL
Description
XFRMR MAGNETIC 1PORT 1:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Transmitter, 1:1 Receiver Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.245" (6.22mm)
Inductance
-
Weight
0.03 oz (0.85 g)
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
H1183NL
2265893
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
H1183NLT
XFRMR MAGNETIC 1PORT 1:1 10/100
90.000Â â‚« Pulse Electronics
