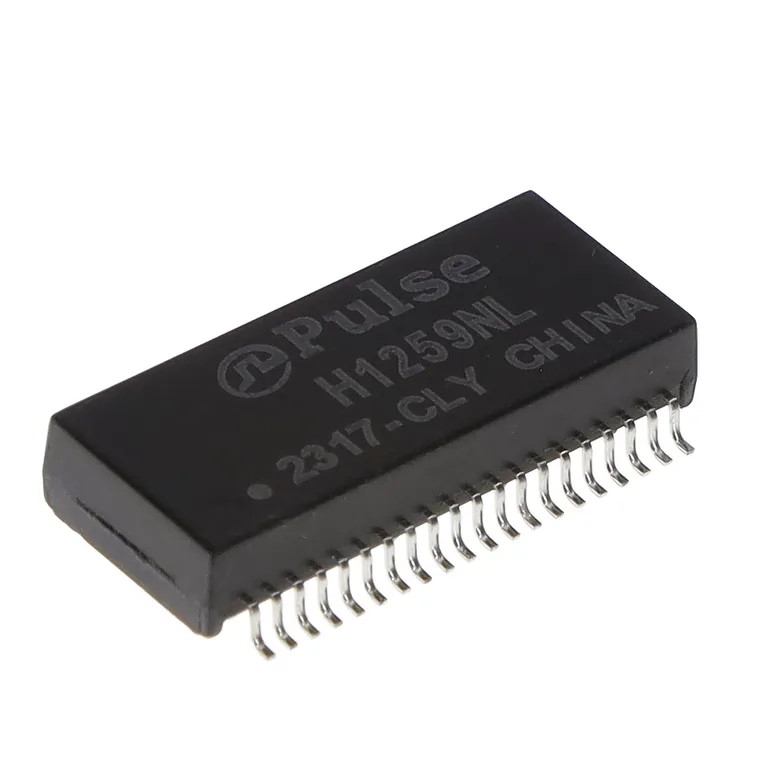

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1259NLT
Manufacturer
Manufacturer Product Number
H1259NLT
Description
XFRMR MODULE 4PORT 1:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
1.125" L x 0.480" W (28.58mm x 12.19mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.235" (5.97mm)
Inductance
-
Weight
0.17 oz (4.84 g)
Documents & Media
Resource Type
Link
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
H1259NLT
8120577
553-H1259NLTCT-ND
553-H1259NLTDKR-ND
553-H1259NLTTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 544
Packaging Quantity Unit Price Ext Price
1 299.000 ₫ 299.000 ₫
299.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
299.000 ₫
299.000 ₫
10
270.000 ₫
2.700.000 ₫
25
259.000 ₫
6.475.000 ₫
50
251.000 ₫
12.550.000 ₫
100
243.000 ₫
24.300.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
299.000 ₫
299.000 ₫
10
270.000 ₫
2.700.000 ₫
25
259.000 ₫
6.475.000 ₫
50
251.000 ₫
12.550.000 ₫
100
243.000 ₫
24.300.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
250
233.000 ₫
58.250.000 ₫
500
226.000 ₫
113.000.000 ₫
750
221.000 ₫
165.750.000 ₫
MOQ 250 · Order multiple 250
Alternate Packaging
H1259NL
MODULE XFRMR ETHERNET LAN 40SOIC
199.000 ₫ Pulse Electronics
