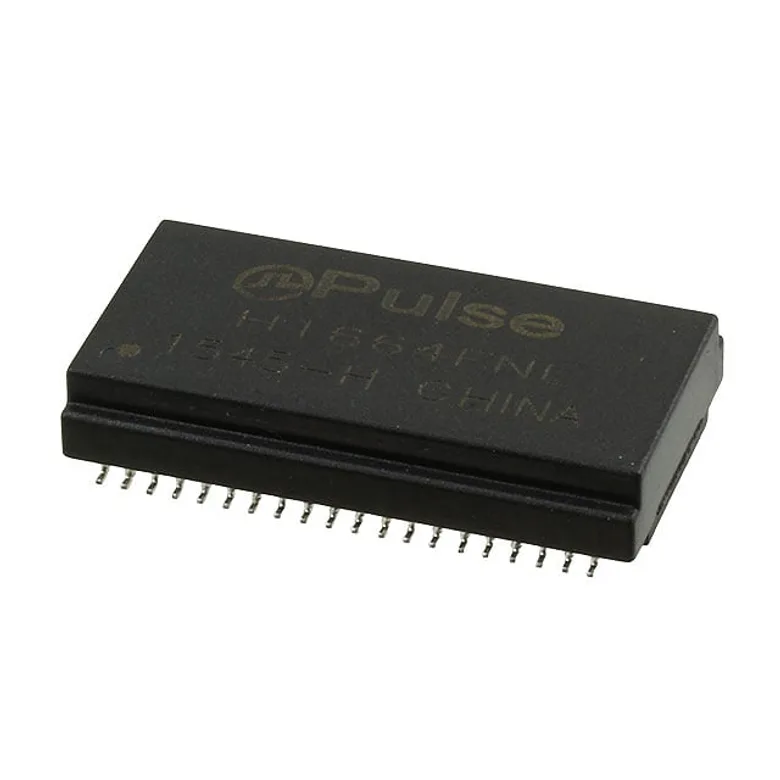

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1664FNL
Manufacturer
Manufacturer Product Number
H1664FNL
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
1.110" L x 0.608" W (28.19mm x 15.44mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.225" (5.72mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H1664FNL
5800474
553-3196-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 10
Packaging Quantity Unit Price Ext Price
1 348.000 ₫ 348.000 ₫
348.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
348.000 ₫
348.000 ₫
15
308.000 ₫
4.620.000 ₫
30
298.000 ₫
8.940.000 ₫
60
289.000 ₫
17.340.000 ₫
105
282.000 ₫
29.610.000 ₫
255
270.000 ₫
68.850.000 ₫
510
262.000 ₫
133.620.000 ₫
1,005
254.000 ₫
255.270.000 ₫
MOQ 1 · Order multiple 1
