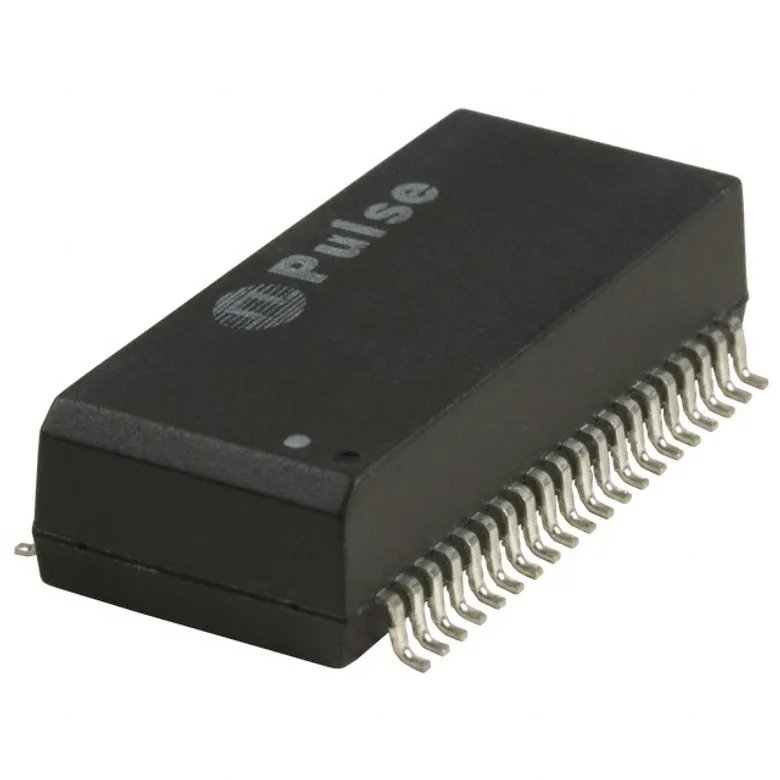

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H1664NL
Manufacturer
Manufacturer Product Number
H1664NL
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
1.110" L x 0.480" W (28.19mm x 12.19mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.225" (5.72mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
Drawings
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H1664NL
8554737
553-H1664NL-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 337.000 ₫ 337.000 ₫
337.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
337.000 ₫
337.000 ₫
15
298.000 ₫
4.470.000 ₫
30
289.000 ₫
8.670.000 ₫
60
280.000 ₫
16.800.000 ₫
105
273.000 ₫
28.665.000 ₫
255
262.000 ₫
66.810.000 ₫
510
253.000 ₫
129.030.000 ₫
1,005
245.000 ₫
246.225.000 ₫
MOQ 1 · Order multiple 1
Substitutes
S558-5999-Q9-F
MODULE XFRMR LAN 10/100B-TX SMD
169.000 ₫ Bel Fuse Inc.
