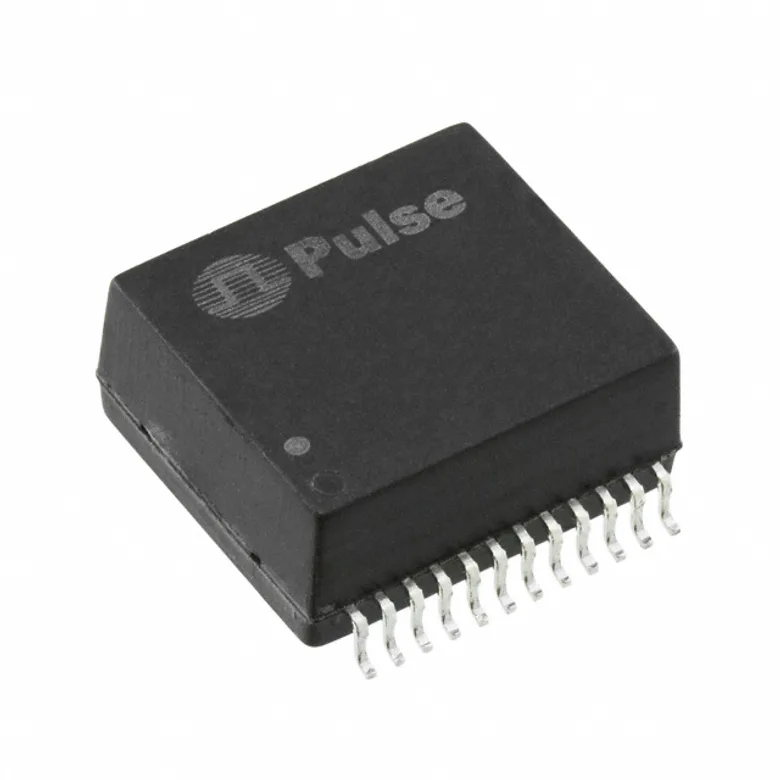

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H2006ANL
Manufacturer
Manufacturer Product Number
H2006ANL
Description
MODULE MAGNETICS POE DUAL VOIP
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE MAGNETICS POE DUAL VOIP
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
ET (Volt-Time)
-
Size / Dimension
0.537" L x 0.470" W (13.64mm x 11.94mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.254" (6.45mm)
Inductance
-
Weight
0.09 oz (2.56 g)
Documents & Media
Resource Type
Link
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H2006ANL
1036895
553-1607-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 346
Packaging Quantity Unit Price Ext Price
1 213.000 ₫ 213.000 ₫
213.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
213.000 ₫
213.000 ₫
10
192.000 ₫
1.920.000 ₫
35
182.000 ₫
6.370.000 ₫
70
176.000 ₫
12.320.000 ₫
105
173.000 ₫
18.165.000 ₫
280
165.000 ₫
46.200.000 ₫
525
161.000 ₫
84.525.000 ₫
1,015
156.000 ₫
158.340.000 ₫
MOQ 1 · Order multiple 1
