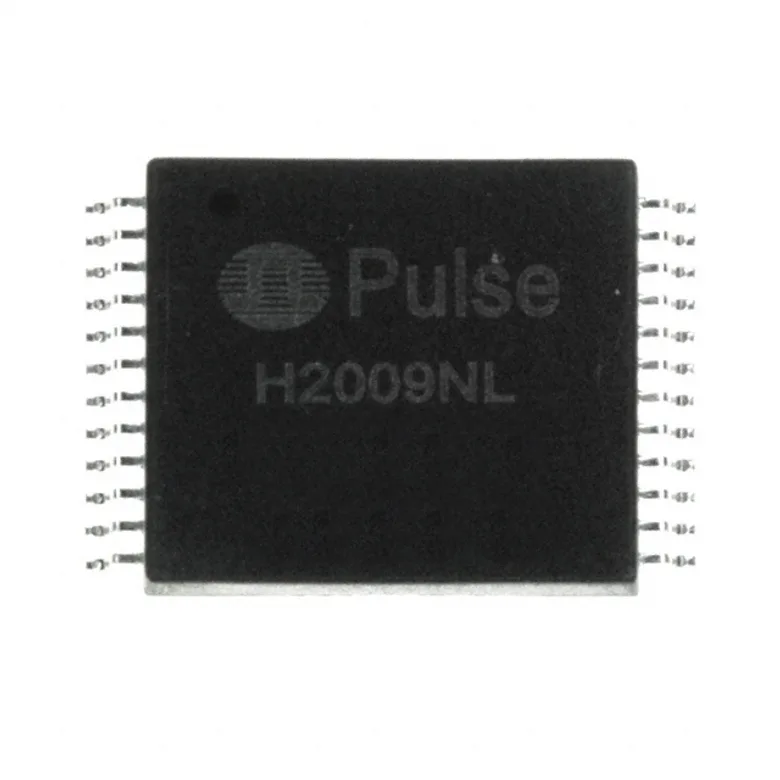

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H2009NL
Manufacturer
Manufacturer Product Number
H2009NL
Description
MODULE XFRMR VOIP DL LAN 24-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE XFRMR VOIP DL LAN 24-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.518" L x 0.595" W (13.16mm x 15.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.251" (6.37mm)
Inductance
-
Weight
0.06 oz (1.71 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
H2009NL
1036948
553-1332-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 239.000 ₫ 239.000 ₫
239.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
239.000 ₫
239.000 ₫
10
215.000 ₫
2.150.000 ₫
35
204.000 ₫
7.140.000 ₫
70
197.000 ₫
13.790.000 ₫
105
194.000 ₫
20.370.000 ₫
280
185.000 ₫
51.800.000 ₫
525
180.000 ₫
94.500.000 ₫
1,015
174.000 ₫
176.610.000 ₫
MOQ 1 · Order multiple 1
