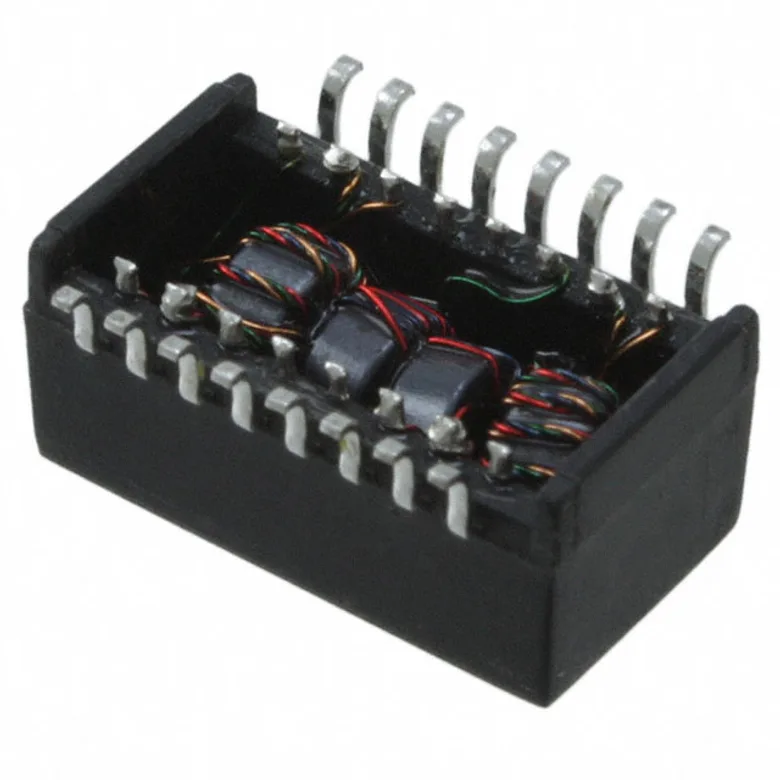

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H2260NLT
Manufacturer
Manufacturer Product Number
H2260NLT
Description
XFRMR MODUL 1PORT POE 1:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.240" (6.10mm)
Inductance
-
Weight
0.1 oz (2.85 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H2260NLT
2265734
H2260NLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 64.000 ₫ 64.000 ₫
64.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,200
64.000 ₫
76.800.000 ₫
MOQ 1,200 · Order multiple 1,200
