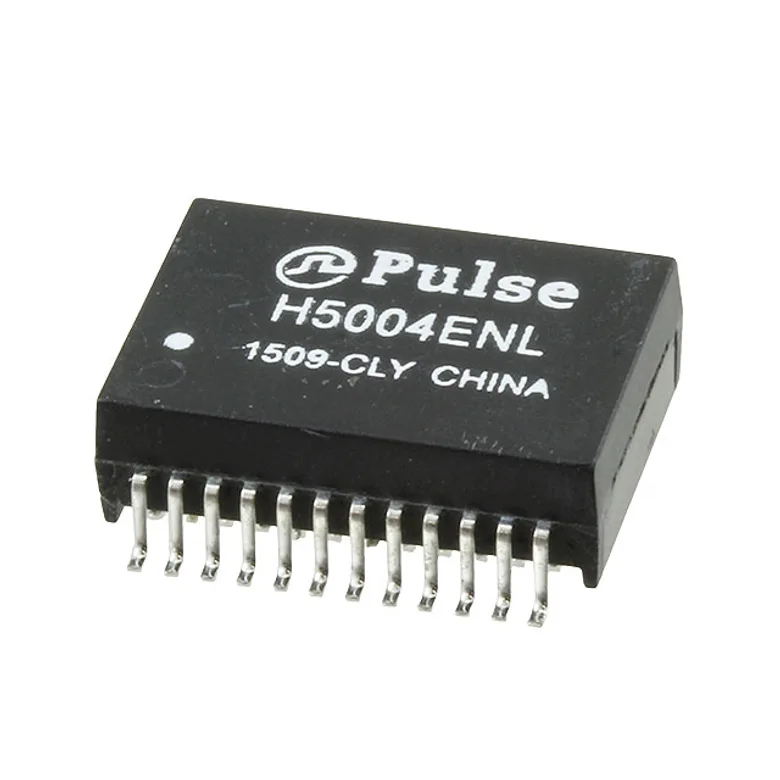

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5004ENLT
Manufacturer
Manufacturer Product Number
H5004ENLT
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.689" L x 0.480" W (17.50mm x 12.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.225" (5.72mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
H5004ENLT
6148249
H5004ENLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 84.000 ₫ 84.000 ₫
84.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
600
84.000 ₫
50.400.000 ₫
MOQ 600 · Order multiple 600
Alternate Packaging
H5004ENL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
221.000 ₫ Pulse Electronics
Substitutes
H5007ENLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
136.000 ₫ Pulse Electronics
H5007ENL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
201.000 ₫ Pulse Electronics
H5004ENL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
221.000 ₫ Pulse Electronics
