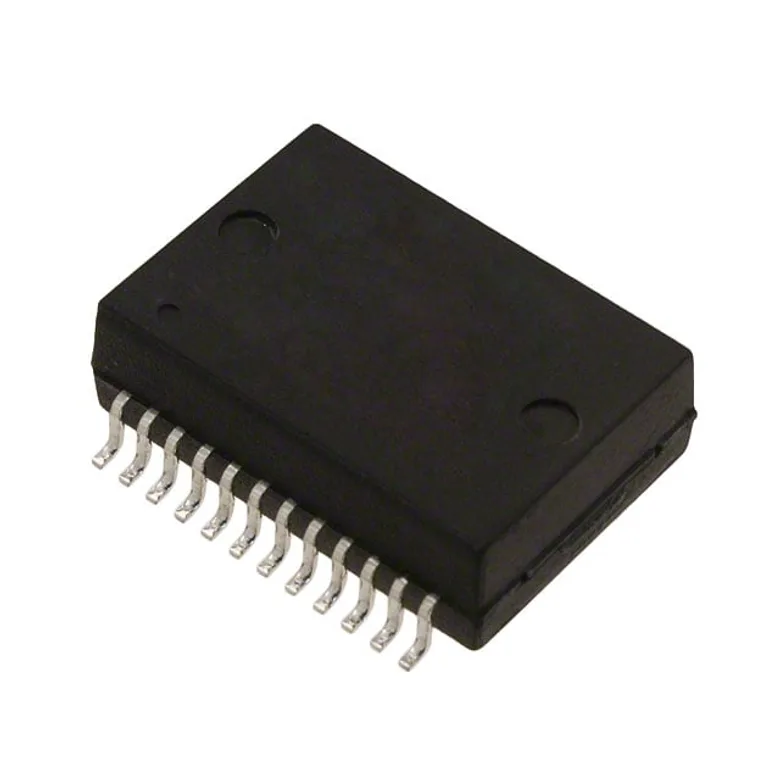

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5004NL
Manufacturer
Manufacturer Product Number
H5004NL
Description
MODULE SINGLE GIGABIT LAN 24SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE SINGLE GIGABIT LAN 24SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.690" L x 0.480" W (17.53mm x 12.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.227" (5.76mm)
Inductance
-
Weight
0.06 oz (1.71 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
H5004NL
1286500
553-1430-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 18
Packaging Quantity Unit Price Ext Price
1 275.000 ₫ 275.000 ₫
275.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
275.000 ₫
275.000 ₫
10
248.000 ₫
2.480.000 ₫
25
238.000 ₫
5.950.000 ₫
50
231.000 ₫
11.550.000 ₫
100
223.000 ₫
22.300.000 ₫
250
214.000 ₫
53.500.000 ₫
500
207.000 ₫
103.500.000 ₫
1,000
201.000 ₫
201.000.000 ₫
MOQ 1 · Order multiple 1
