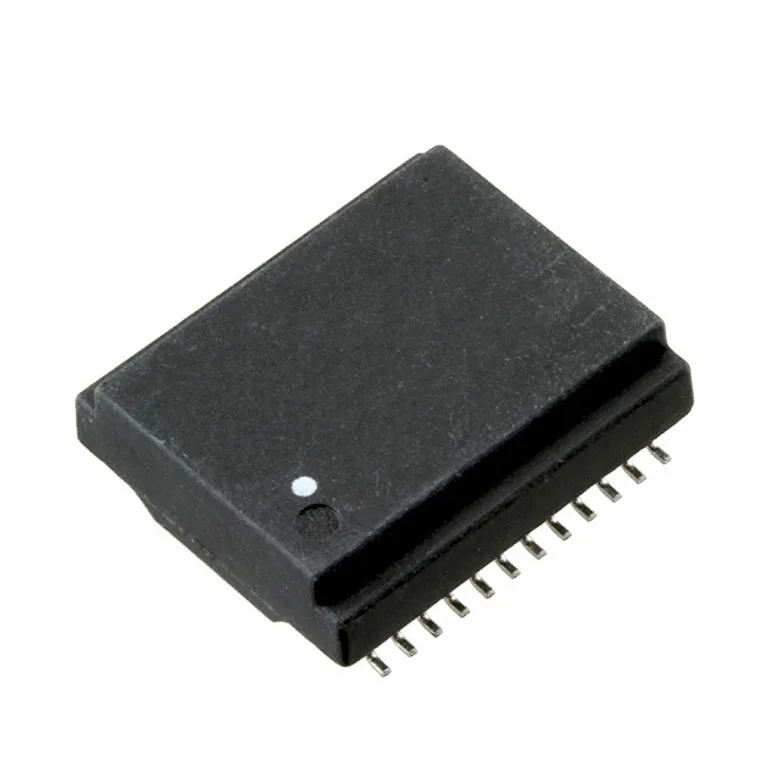

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5007EFNLT
Manufacturer
Manufacturer Product Number
H5007EFNLT
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.689" L x 0.600" W (17.50mm x 15.24mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.225" (5.72mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
H5007EFNLT
5174264
553-H5007EFNLTTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 137.000 ₫ 137.000 ₫
137.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
300
137.000 ₫
41.100.000 ₫
600
133.000 ₫
79.800.000 ₫
900
130.000 ₫
117.000.000 ₫
1,500
127.000 ₫
190.500.000 ₫
MOQ 300 · Order multiple 300
Alternate Packaging
H5007EFNL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
217.000 ₫ Pulse Electronics
Substitutes
H5062FNL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
192.000 ₫ Pulse Electronics
H5007EFNL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
217.000 ₫ Pulse Electronics
H6062FNL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
173.000 ₫ Pulse Electronics
H5062FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
91.000 ₫ Pulse Electronics
