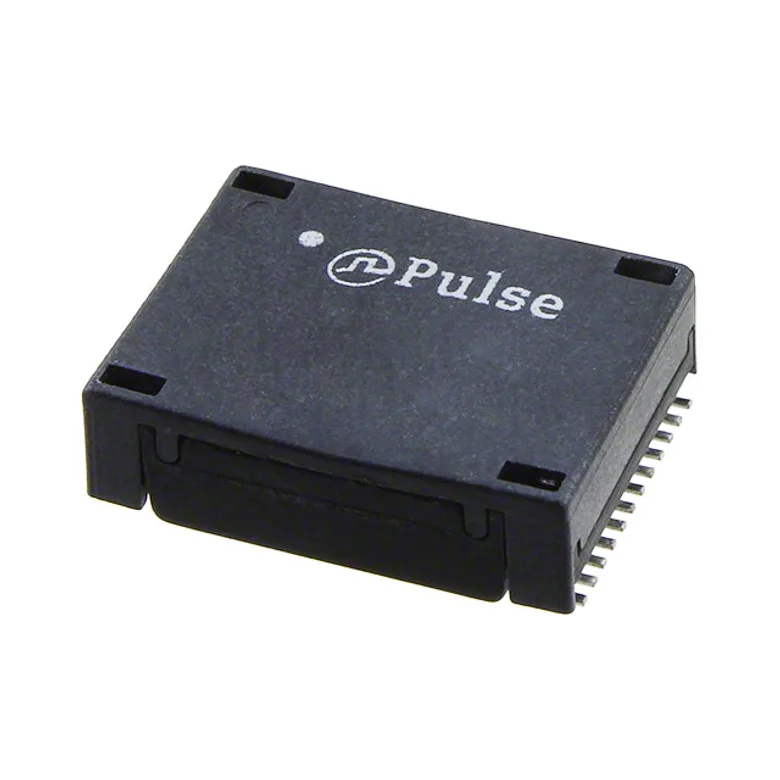

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5008FNL
Manufacturer
Manufacturer Product Number
H5008FNL
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100/1000 Base-T, Power over Ethernet (PoE)
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.743" L x 0.538" W (18.87mm x 13.67mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.231" (5.87mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
H5008FNL
4291855
553-2224-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 97
Packaging Quantity Unit Price Ext Price
1 317.000 ₫ 317.000 ₫
317.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
317.000 ₫
317.000 ₫
10
286.000 ₫
2.860.000 ₫
35
270.000 ₫
9.450.000 ₫
70
262.000 ₫
18.340.000 ₫
105
257.000 ₫
26.985.000 ₫
280
246.000 ₫
68.880.000 ₫
525
239.000 ₫
125.475.000 ₫
1,015
231.000 ₫
234.465.000 ₫
MOQ 1 · Order multiple 1
