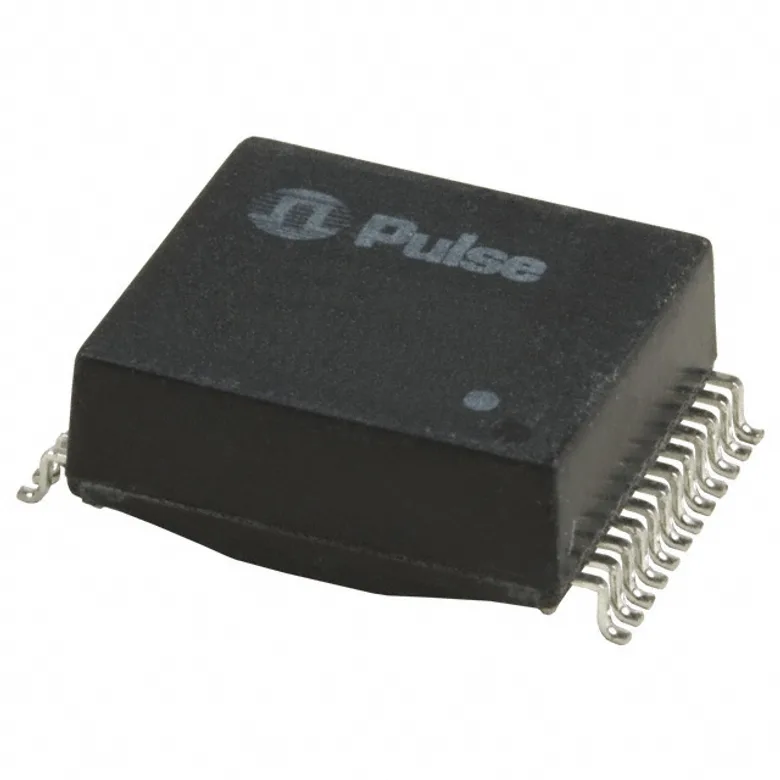

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5009NL
Manufacturer
Manufacturer Product Number
H5009NL
Description
MODULE XFORMR GIGABIT SINGLE LAN
Manufacturer Standard Lead Time Contact us
Detailed Description
Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.537" L x 0.600" W (13.64mm x 15.24mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.235" (5.97mm)
Inductance
-
Weight
0.06 oz (1.71 g)
Documents & Media
Resource Type
Link
Datasheets
Drawings
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H5009NL
1036905
553-1605-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 175.000 ₫ 175.000 ₫
175.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
245
175.000 ₫
42.875.000 ₫
MOQ 245 · Order multiple 245
