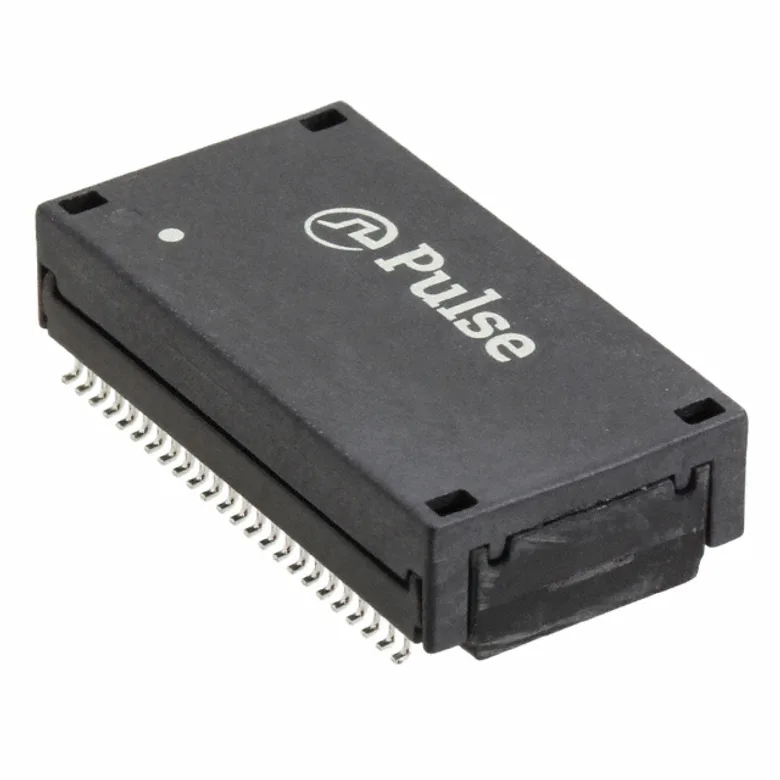

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5014FNL
Manufacturer
Manufacturer Product Number
H5014FNL
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
1.095" L x 0.590" W (27.81mm x 14.99mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.285" (7.24mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H5014FNL
4291859
553-2228-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 172
Packaging Quantity Unit Price Ext Price
1 424.000 ₫ 424.000 ₫
424.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
424.000 ₫
424.000 ₫
15
375.000 ₫
5.625.000 ₫
30
363.000 ₫
10.890.000 ₫
60
352.000 ₫
21.120.000 ₫
105
343.000 ₫
36.015.000 ₫
255
329.000 ₫
83.895.000 ₫
510
319.000 ₫
162.690.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
H5014FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
421.000 ₫ Pulse Electronics
H5014FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
421.000 ₫ Pulse Electronics
H5014FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
421.000 ₫ Pulse Electronics
Substitutes
H5014FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
421.000 ₫ Pulse Electronics
H6080FNL
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
385.000 ₫ Pulse Electronics
