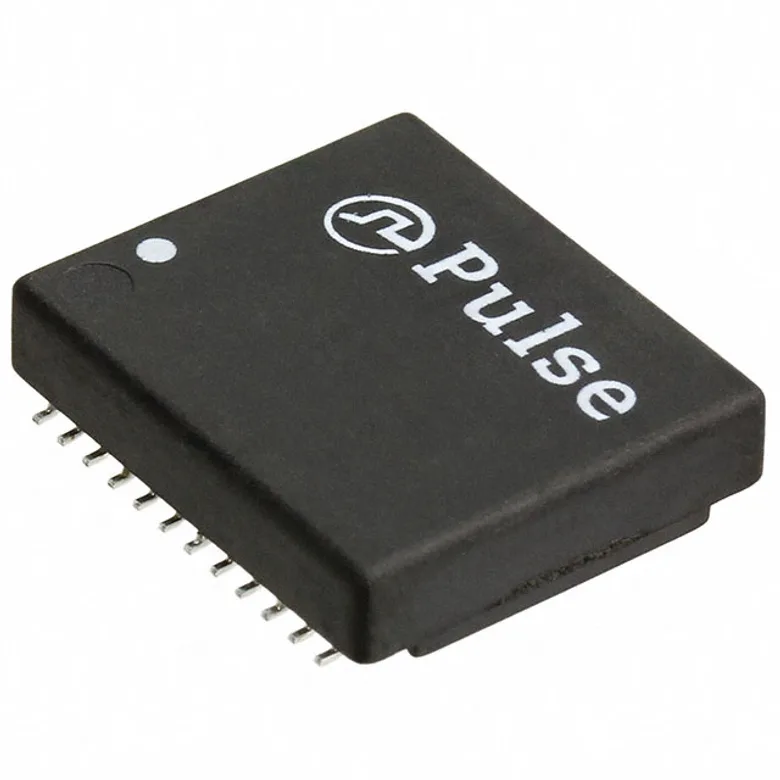

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5015FNL
Manufacturer
Manufacturer Product Number
H5015FNL
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.695" L x 0.596" W (17.66mm x 15.14mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.180" (4.57mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H5015FNL
4292004
553-2713-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 50
Packaging Quantity Unit Price Ext Price
1 230.000 ₫ 230.000 ₫
230.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
230.000 ₫
230.000 ₫
10
207.000 ₫
2.070.000 ₫
25
199.000 ₫
4.975.000 ₫
50
193.000 ₫
9.650.000 ₫
100
187.000 ₫
18.700.000 ₫
250
179.000 ₫
44.750.000 ₫
500
173.000 ₫
86.500.000 ₫
1,000
168.000 ₫
168.000.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
H5015FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
175.000 ₫ Pulse Electronics
H5015FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
229.000 ₫ Pulse Electronics
H5015FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
229.000 ₫ Pulse Electronics
Substitutes
H5015FNLT
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
175.000 ₫ Pulse Electronics
