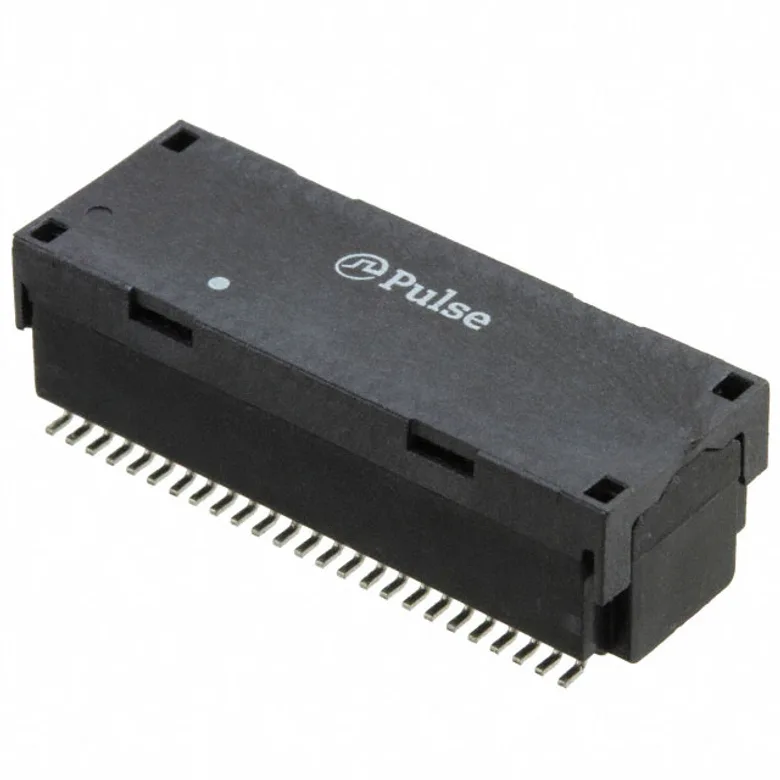

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5020FNLT
Manufacturer
Manufacturer Product Number
H5020FNLT
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
1.100" L x 0.395" W (27.94mm x 10.03mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.340" (8.64mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
H5020FNLT
4291865
553-2234-2-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 250
Packaging Quantity Unit Price Ext Price
1 355.000 ₫ 355.000 ₫
355.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
250
355.000 ₫
88.750.000 ₫
500
344.000 ₫
172.000.000 ₫
750
338.000 ₫
253.500.000 ₫
MOQ 250 · Order multiple 250
Alternate Packaging
H5020FNL
PULSE XFMR 1CT:1 TX 1CT:1 RX
461.000 ₫ Pulse Electronics
