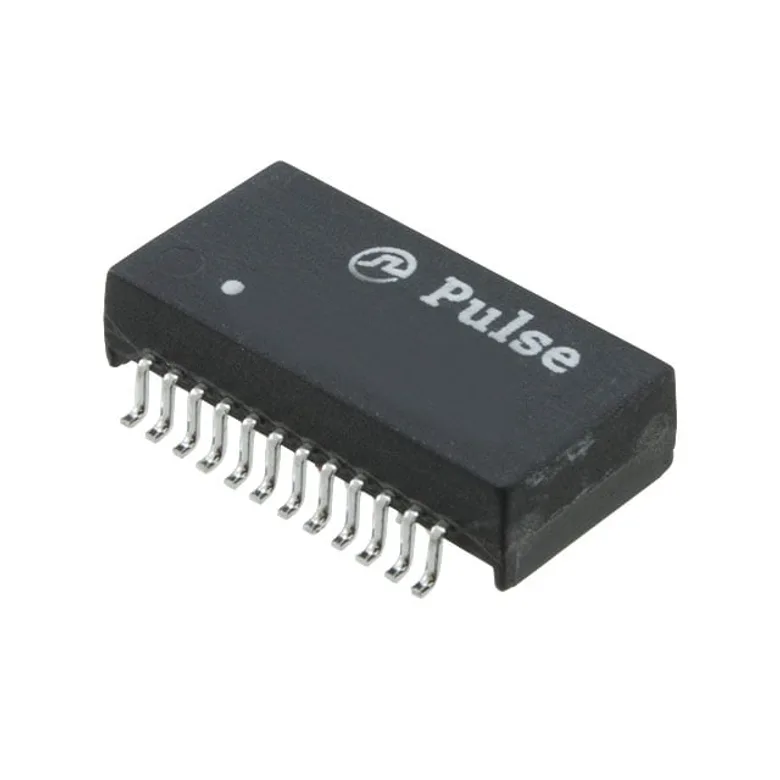

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5084NL
Manufacturer
Manufacturer Product Number
H5084NL
Description
MODULE MAGNETIC 1PORT 1000BASE-T
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE MAGNETIC 1PORT 1000BASE-T
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.600" L x 0.300" W (15.24mm x 7.62mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.163" (4.14mm)
Inductance
-
Weight
0.02 oz (0.57 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
H5084NL
2265843
553-1635-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 695
Packaging Quantity Unit Price Ext Price
1 136.000 ₫ 136.000 ₫
136.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
136.000 ₫
136.000 ₫
10
123.000 ₫
1.230.000 ₫
30
117.000 ₫
3.510.000 ₫
60
113.000 ₫
6.780.000 ₫
120
110.000 ₫
13.200.000 ₫
270
106.000 ₫
28.620.000 ₫
510
103.000 ₫
52.530.000 ₫
1,020
99.000 ₫
100.980.000 ₫
MOQ 1 · Order multiple 1
