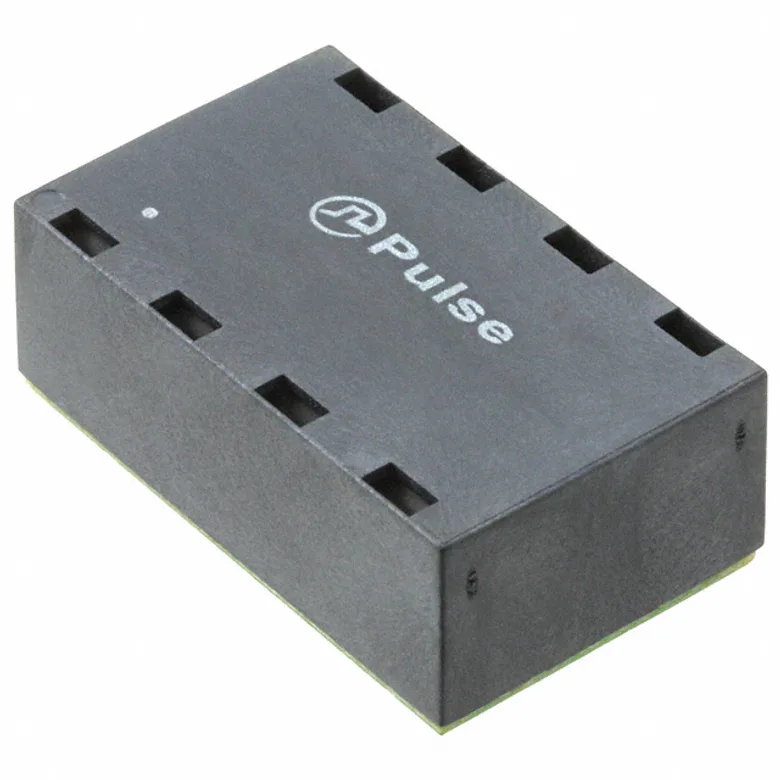

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics H5400NL
Manufacturer
Manufacturer Product Number
H5400NL
Description
MODULE XFORMR QUAD GIGABIT SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
Pulse Transformer 1CT:1CT Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
1.120" L x 0.680" W (28.45mm x 17.27mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.438" (11.12mm)
Inductance
-
Weight
0.35 oz (9.97 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
H5400NL
1616675
553-1457-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 463
Packaging Quantity Unit Price Ext Price
1 606.000 ₫ 606.000 ₫
606.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
606.000 ₫
606.000 ₫
10
546.000 ₫
5.460.000 ₫
25
523.000 ₫
13.075.000 ₫
60
503.000 ₫
30.180.000 ₫
120
487.000 ₫
58.440.000 ₫
300
466.000 ₫
139.800.000 ₫
540
454.000 ₫
245.160.000 ₫
MOQ 1 · Order multiple 1
