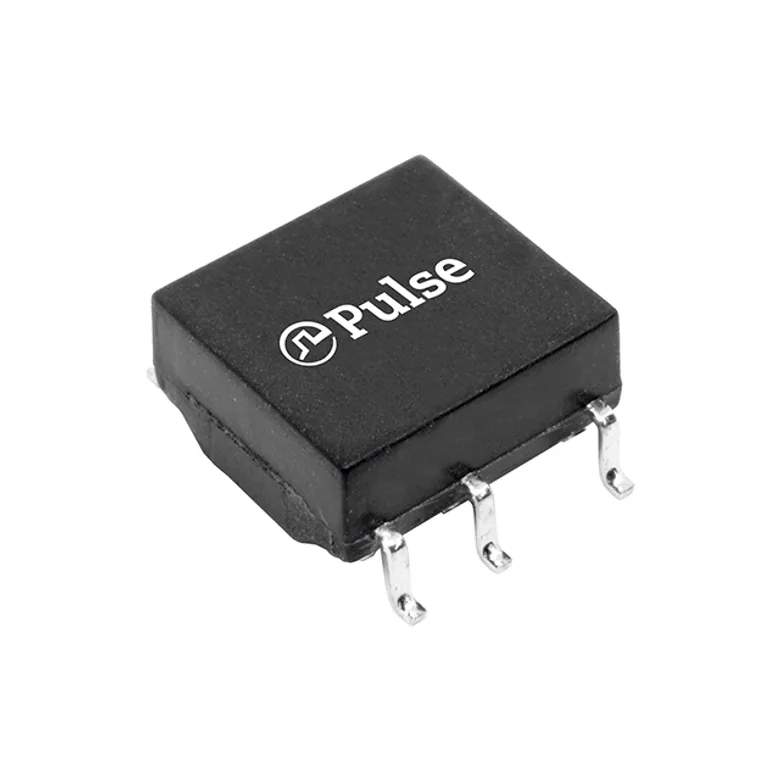

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HM1236NLT
Manufacturer
Manufacturer Product Number
HM1236NLT
Description
MDL, SIN, XFMR-CMC, 1:1, 3.2KV,
Manufacturer Standard Lead Time Contact us
Detailed Description
500µH Pulse Transformer 1:1 Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 125°C
Transformer Type
-
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.340" L x 0.330" W (8.64mm x 8.38mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.160" (4.06mm)
Inductance
500µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
HM1236NLT
8556223
HM1236NLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 89.000 ₫ 89.000 ₫
89.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
800
89.000 ₫
71.200.000 ₫
MOQ 800 · Order multiple 800
Alternate Packaging
HM1236NL
XFMR CMC MODULE AECQ BATT MNGT
136.000 ₫ Pulse Electronics
