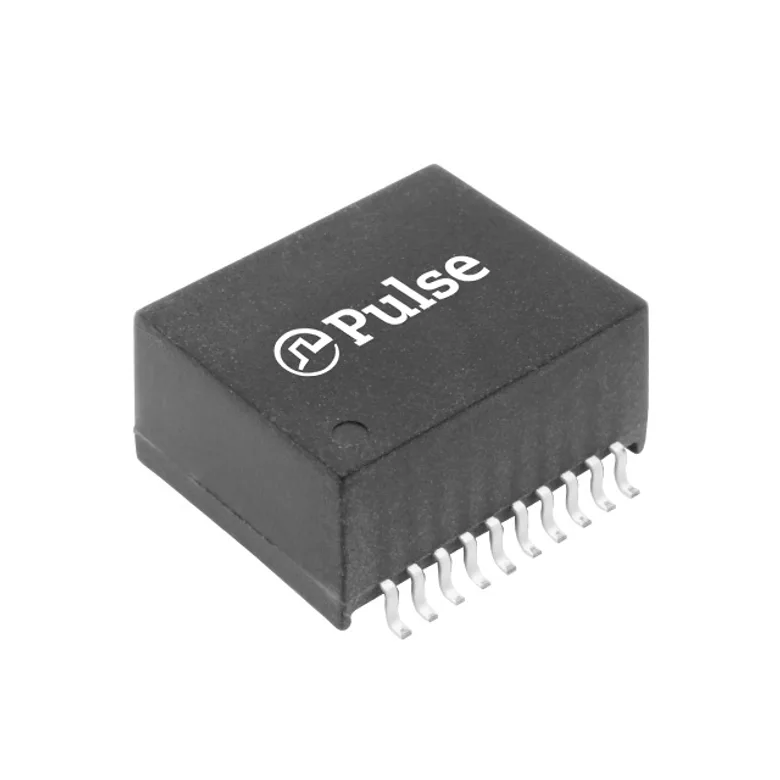

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HM1331NLT
Manufacturer
Manufacturer Product Number
HM1331NLT
Description
MDL,SIN,100D,1:1,SMT
Manufacturer Standard Lead Time Contact us
Detailed Description
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.600" W (12.70mm x 15.24mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.300" (7.62mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HM1331NLT
7667391
HM1331NLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 180.000 ₫ 180.000 ₫
180.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
500
180.000 ₫
90.000.000 ₫
MOQ 500 · Order multiple 500
Alternate Packaging
HM1331NL
MDL,SIN,100D,1:1,SMT
277.000 ₫ Pulse Electronics
Substitutes
HM1331NL
MDL,SIN,100D,1:1,SMT
277.000 ₫ Pulse Electronics
