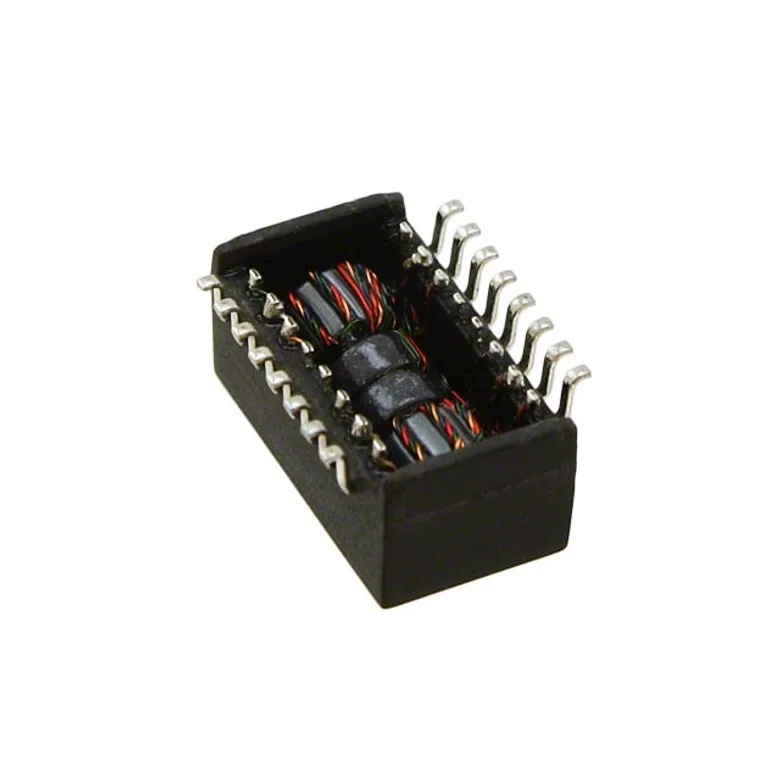

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX1198NL
Manufacturer
Manufacturer Product Number
HX1198NL
Description
MODULE XFRMR SGL ETHR LAN 16SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE XFRMR SGL ETHR LAN 16SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1 Transmitter, 1:1 Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.280" W (12.70mm x 7.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.245" (6.22mm)
Inductance
-
Weight
0.03 oz (0.85 g)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Drawings
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
HX1198NL
1036957
553-1341-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 494
Packaging Quantity Unit Price Ext Price
1 120.000 ₫ 120.000 ₫
120.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
120.000 ₫
120.000 ₫
10
109.000 ₫
1.090.000 ₫
40
102.000 ₫
4.080.000 ₫
80
99.000 ₫
7.920.000 ₫
120
97.000 ₫
11.640.000 ₫
280
94.000 ₫
26.320.000 ₫
520
91.000 ₫
47.320.000 ₫
1,000
88.000 ₫
88.000.000 ₫
MOQ 1 · Order multiple 1
