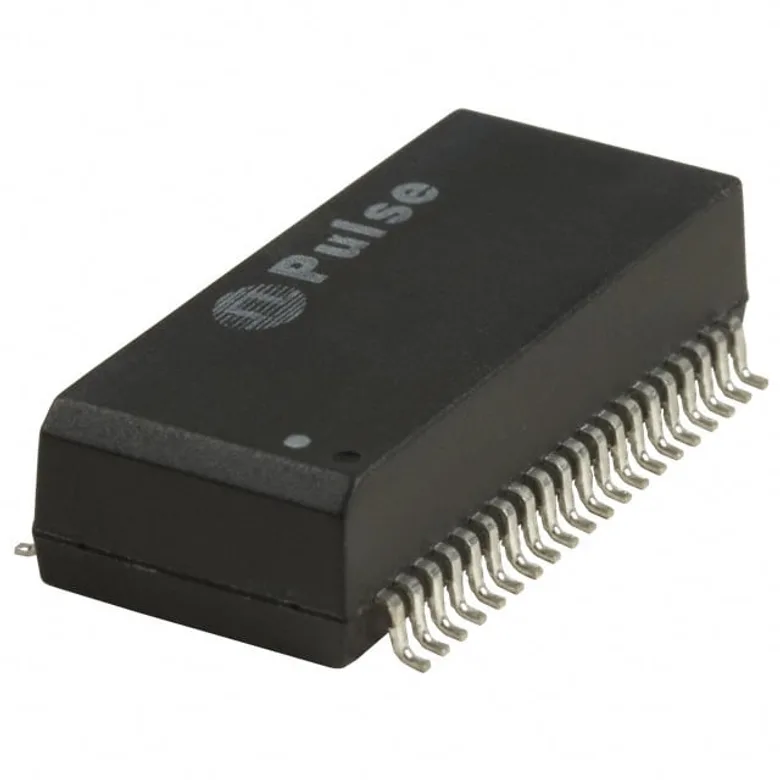

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX1234NL
Manufacturer
Manufacturer Product Number
HX1234NL
Description
MODULE XFRMR ETHERNET LAN 40SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
MODULE XFRMR ETHERNET LAN 40SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
1.125" L x 0.480" W (28.58mm x 12.19mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.290" (7.36mm)
Inductance
-
Weight
0.17 oz (4.84 g)
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
HX1234NL
1036958
553-1342-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 481
Packaging Quantity Unit Price Ext Price
1 347.000 ₫ 347.000 ₫
347.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
347.000 ₫
347.000 ₫
15
307.000 ₫
4.605.000 ₫
30
297.000 ₫
8.910.000 ₫
60
288.000 ₫
17.280.000 ₫
105
281.000 ₫
29.505.000 ₫
255
269.000 ₫
68.595.000 ₫
510
261.000 ₫
133.110.000 ₫
1,005
253.000 ₫
254.265.000 ₫
MOQ 1 · Order multiple 1
