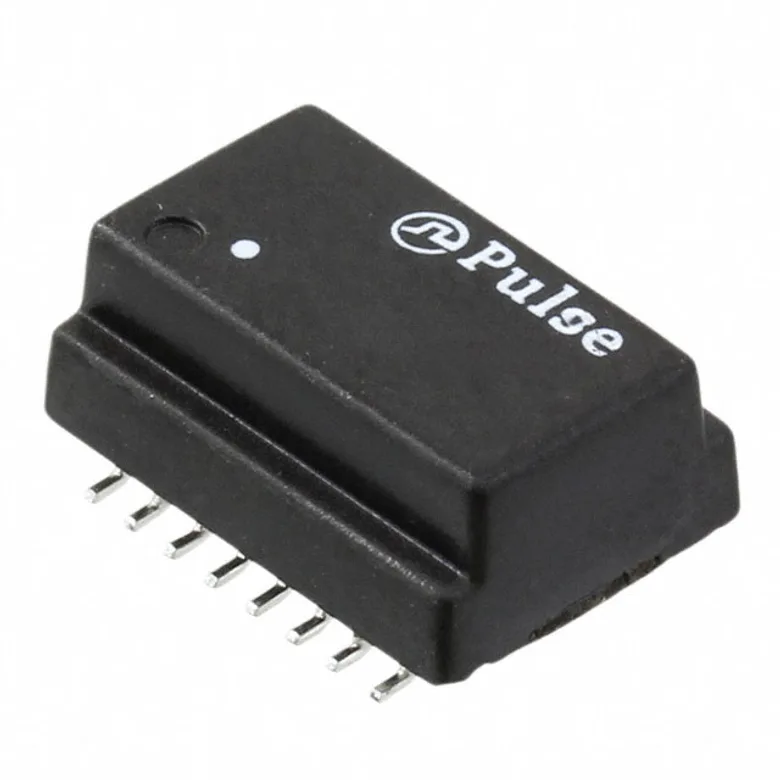

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX1260FNL
Manufacturer
Manufacturer Product Number
HX1260FNL
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.500" L x 0.358" W (12.70mm x 9.09mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.236" (5.99mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HX1260FNL
4168363
553-2202-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 950
Packaging Quantity Unit Price Ext Price
1 116.000 ₫ 116.000 ₫
116.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
116.000 ₫
116.000 ₫
10
105.000 ₫
1.050.000 ₫
40
98.000 ₫
3.920.000 ₫
80
95.000 ₫
7.600.000 ₫
120
94.000 ₫
11.280.000 ₫
280
90.000 ₫
25.200.000 ₫
520
88.000 ₫
45.760.000 ₫
1,000
85.000 ₫
85.000.000 ₫
MOQ 1 · Order multiple 1
