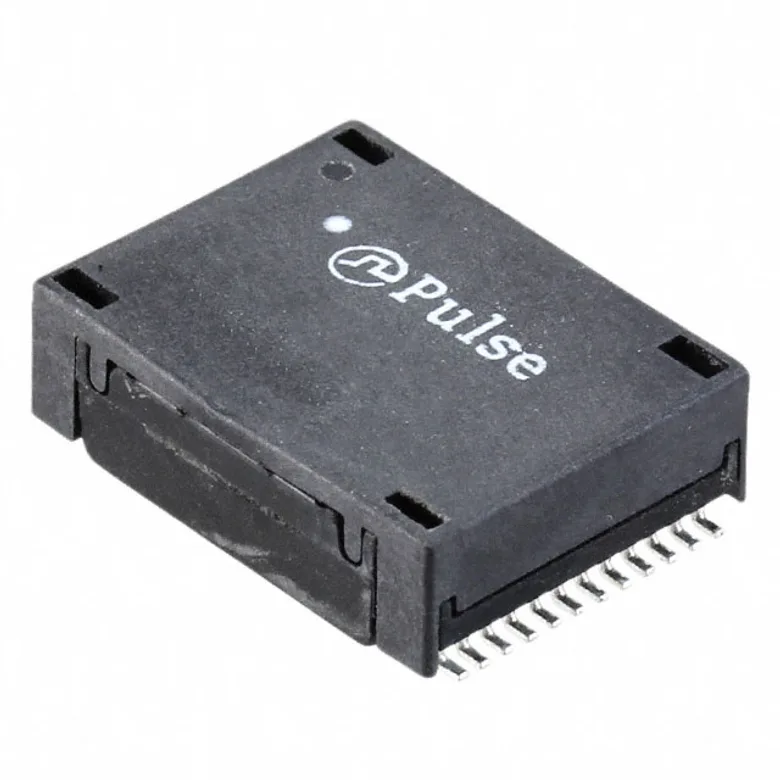

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX1294FNL
Manufacturer
Manufacturer Product Number
HX1294FNL
Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.538" L x 0.726" W (13.67mm x 18.44mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.231" (5.87mm)
Inductance
325µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
HX1294FNL
4291871
553-2240-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 394
Packaging Quantity Unit Price Ext Price
1 216.000 ₫ 216.000 ₫
216.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
216.000 ₫
216.000 ₫
10
195.000 ₫
1.950.000 ₫
35
185.000 ₫
6.475.000 ₫
70
179.000 ₫
12.530.000 ₫
105
176.000 ₫
18.480.000 ₫
280
168.000 ₫
47.040.000 ₫
525
163.000 ₫
85.575.000 ₫
1,015
158.000 ₫
160.370.000 ₫
MOQ 1 · Order multiple 1
