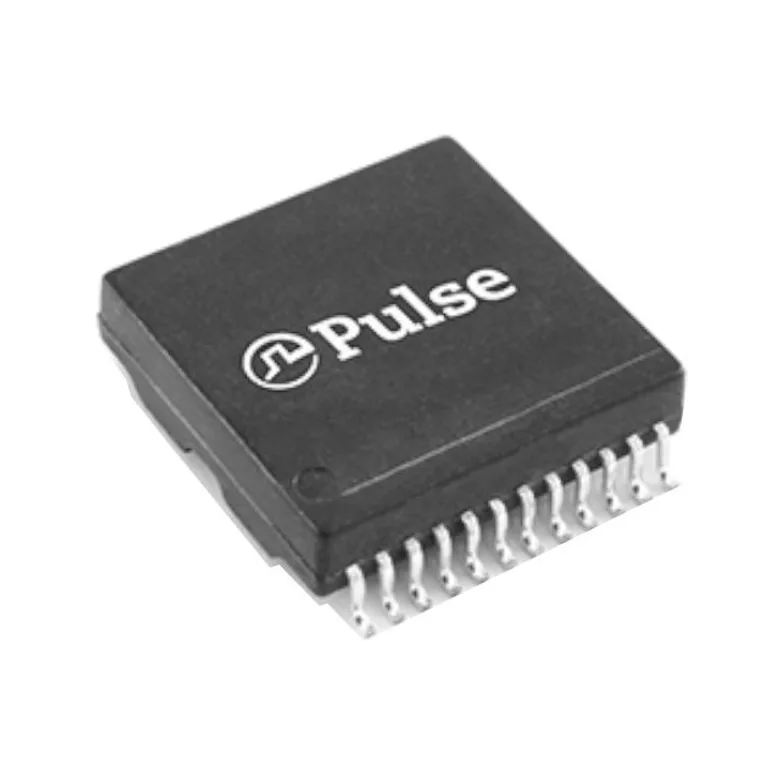

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX2305NL
Manufacturer
Manufacturer Product Number
HX2305NL
Description
XFRMR MODUL 2PORT POE 1:1 10/100
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR MODUL 2PORT POE 1:1 10/100
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1:1
ET (Volt-Time)
-
Size / Dimension
0.518" L x 0.595" W (13.16mm x 15.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.251" (6.37mm)
Inductance
-
Weight
0.1 oz (2.85 g)
Documents & Media
Resource Type
Link
Datasheets
Drawings
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HX2305NL
2265397
HX2305NL-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 350
Packaging Quantity Unit Price Ext Price
1 244.000 ₫ 244.000 ₫
244.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
244.000 ₫
244.000 ₫
10
220.000 ₫
2.200.000 ₫
35
208.000 ₫
7.280.000 ₫
70
202.000 ₫
14.140.000 ₫
105
198.000 ₫
20.790.000 ₫
280
189.000 ₫
52.920.000 ₫
525
184.000 ₫
96.600.000 ₫
1,015
178.000 ₫
180.670.000 ₫
MOQ 1 · Order multiple 1
