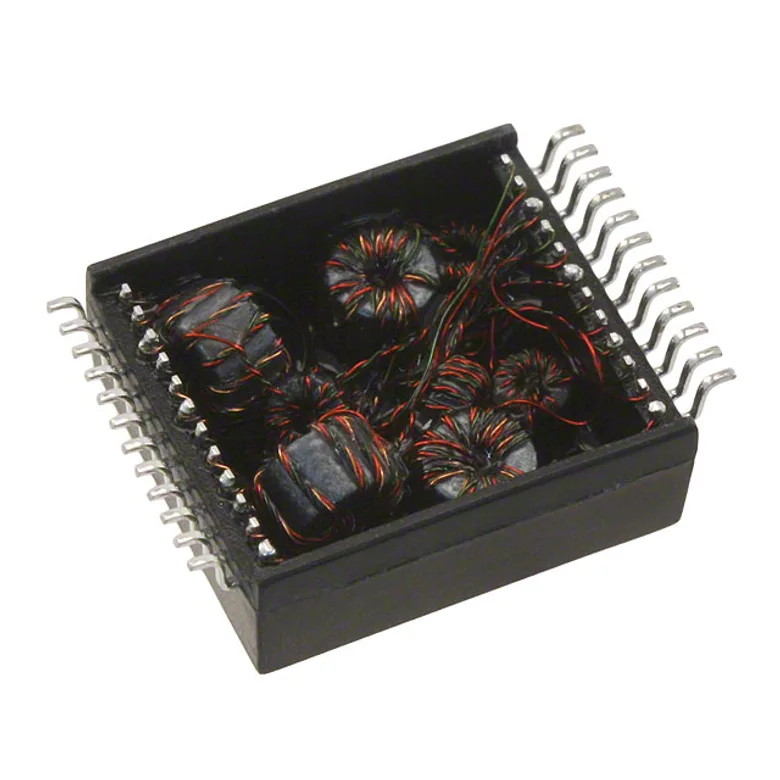

Pulse Electronics HX5009NL
Manufacturer
Manufacturer Product Number
HX5009NL
Description
MODULE XFORMR GIGABIT SINGLE LAN
Manufacturer Standard Lead Time Contact us
Detailed Description
Isolation and Data Interface (Encapsulated) Pulse Transformer 1CT:1CT Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C
Transformer Type
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
0.537" L x 0.600" W (13.64mm x 15.24mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.235" (5.97mm)
Inductance
-
Weight
0.06 oz (1.71 g)
