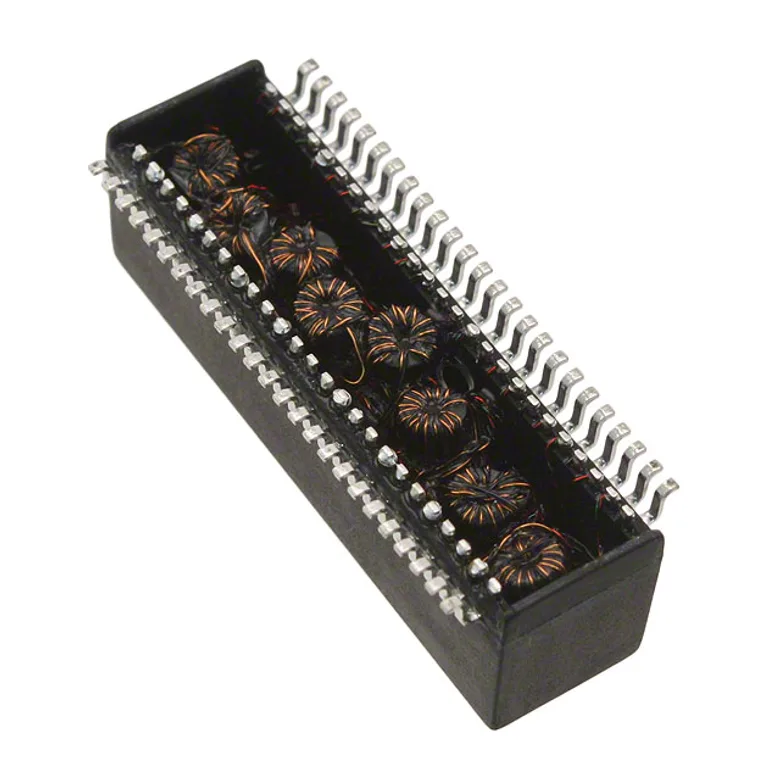

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX5020
Manufacturer
Manufacturer Product Number
HX5020
Description
MODULE DL GIGABIT ETHER LAN 48P
Manufacturer Standard Lead Time Contact us
Detailed Description
LAN 1000 Base-T Pulse Transformer 1CT:1CT Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT
ET (Volt-Time)
-
Size / Dimension
1.100" L x 0.297" W (27.94mm x 7.54mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.341" (8.66mm)
Inductance
-
Weight
0.06 oz (1.71 g)
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
HX5020
754311
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
