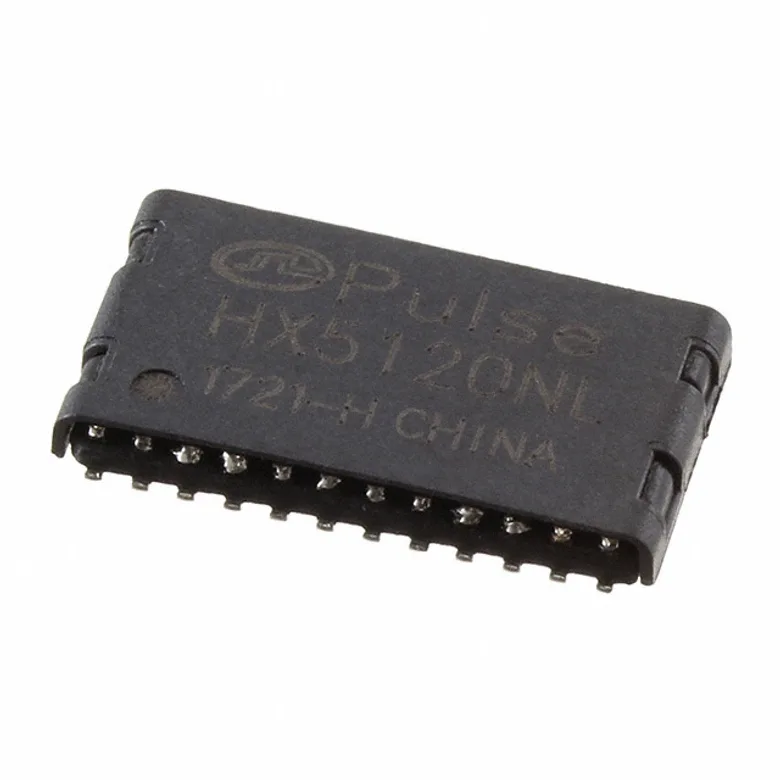

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX5120NL
Manufacturer
Manufacturer Product Number
HX5120NL
Description
PULSE XFMR 1 CT:1CT TX/RX 350UH
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1 CT:1CT TX/RX 350UH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.650" L x 0.360" W (16.51mm x 9.14mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.082" (2.08mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HX5120NL
4547071
553-3249-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 5,957
Packaging Quantity Unit Price Ext Price
1 486.000 ₫ 486.000 ₫
486.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
486.000 ₫
486.000 ₫
10
438.000 ₫
4.380.000 ₫
30
417.000 ₫
12.510.000 ₫
60
404.000 ₫
24.240.000 ₫
120
391.000 ₫
46.920.000 ₫
270
376.000 ₫
101.520.000 ₫
510
365.000 ₫
186.150.000 ₫
MOQ 1 · Order multiple 1
