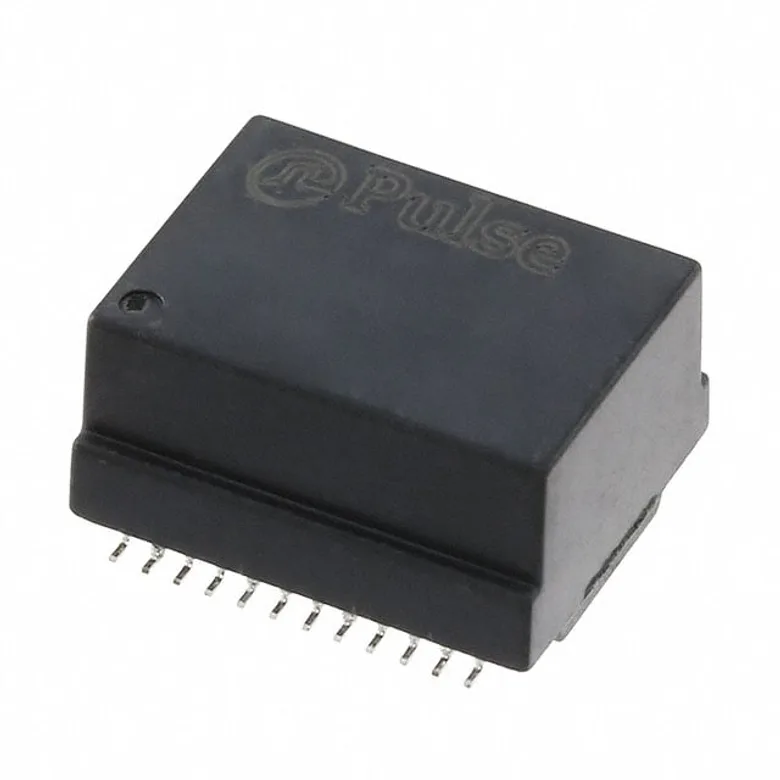

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX5224CNLT
Manufacturer
Manufacturer Product Number
HX5224CNLT
Description
PULSE XFMR 1 CT:1CT TX/RX 350UH
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1 CT:1CT TX/RX 350UH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.728" L x 0.604" W (18.50mm x 15.34mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.385" (9.77mm)
Inductance
350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
HX5224CNLT
6148270
HX5224CNLT-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 242.000 ₫ 242.000 ₫
242.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
500
242.000 ₫
121.000.000 ₫
MOQ 500 · Order multiple 500
Alternate Packaging
HX5224CNL
PULSE XFMR 1 CT:1CT TX/RX 350UH
365.000 ₫ Pulse Electronics
Substitutes
HX5224CNL
PULSE XFMR 1 CT:1CT TX/RX 350UH
365.000 ₫ Pulse Electronics
