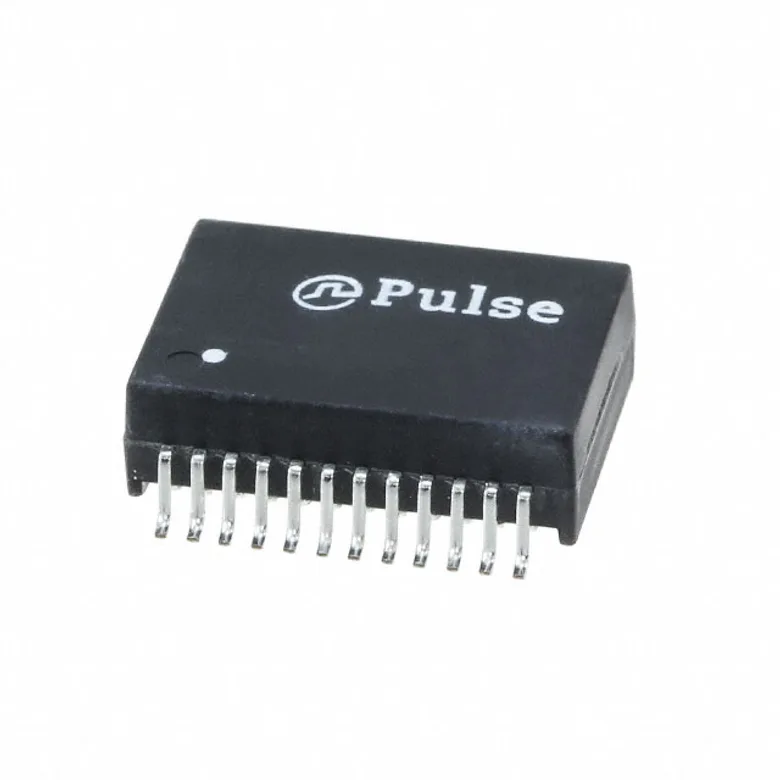

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX6062NL
Manufacturer
Manufacturer Product Number
HX6062NL
Description
PULSE XFMR 1CT:1CT TX/RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX/RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.689" L x 0.480" W (17.50mm x 12.20mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.225" (5.72mm)
Inductance
325µH, 350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
HX6062NL
4169597
553-3250-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 223.000 ₫ 223.000 ₫
223.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
223.000 ₫
223.000 ₫
10
201.000 ₫
2.010.000 ₫
25
193.000 ₫
4.825.000 ₫
50
187.000 ₫
9.350.000 ₫
100
181.000 ₫
18.100.000 ₫
250
174.000 ₫
43.500.000 ₫
500
169.000 ₫
84.500.000 ₫
1,000
163.000 ₫
163.000.000 ₫
MOQ 1 · Order multiple 1
