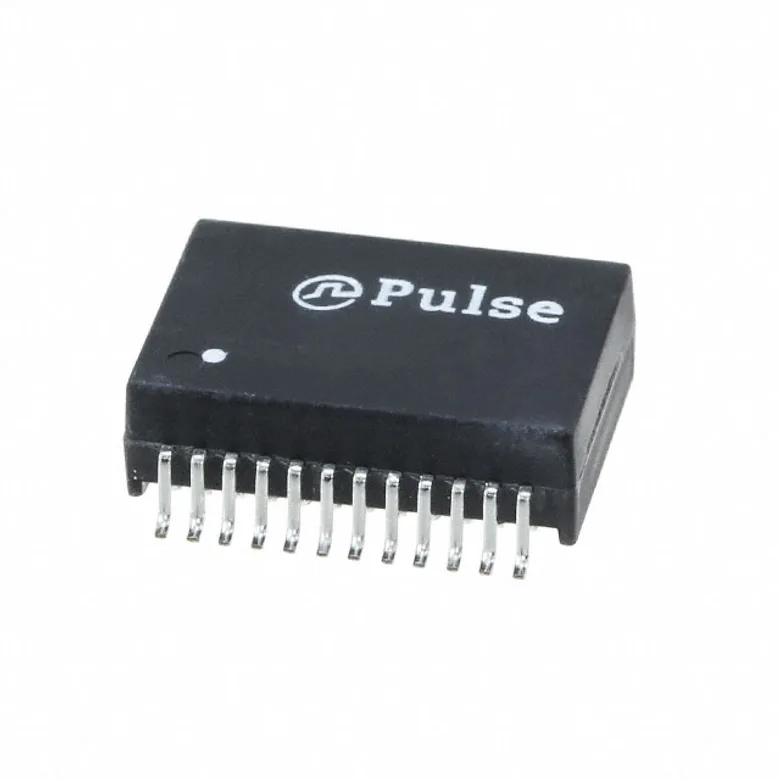

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX6098FNL
Manufacturer
Manufacturer Product Number
HX6098FNL
Description
PULSE XFMR 1 CT:1CT TX/RX 120UH
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1 CT:1CT TX/RX 120UH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
0.715" L x 0.595" W (18.16mm x 15.11mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.260" (6.60mm)
Inductance
120µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
HX6098FNL
5174280
553-3898-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 294
Packaging Quantity Unit Price Ext Price
1 234.000 ₫ 234.000 ₫
234.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
234.000 ₫
234.000 ₫
10
211.000 ₫
2.110.000 ₫
25
202.000 ₫
5.050.000 ₫
50
196.000 ₫
9.800.000 ₫
100
190.000 ₫
19.000.000 ₫
250
182.000 ₫
45.500.000 ₫
500
176.000 ₫
88.000.000 ₫
1,000
171.000 ₫
171.000.000 ₫
MOQ 1 · Order multiple 1
Substitutes
TMU24C14U
LAN XFMR 1G BASE-T POE ULTRA
99.000 ₫ Taoglas Limited
