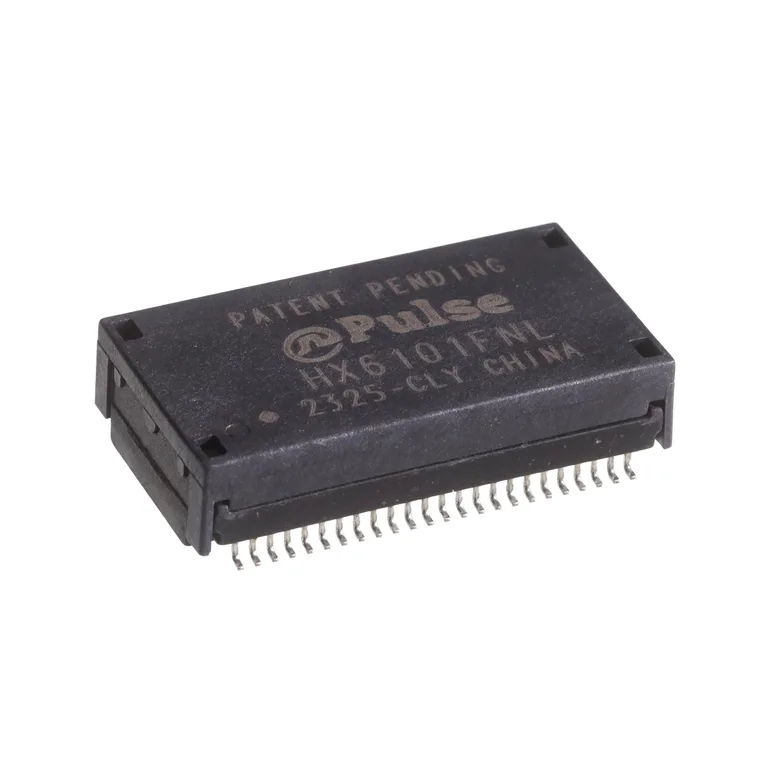

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX6101FNLT
Manufacturer
Manufacturer Product Number
HX6101FNLT
Description
PULSE XFMR 1CT:1CT TX/RX
Manufacturer Standard Lead Time Contact us
Detailed Description
PULSE XFMR 1CT:1CT TX/RX
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
1.095" L x 0.590" W (27.81mm x 14.99mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.285" (7.24mm)
Inductance
120µH, 350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Related Documents
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
HX6101FNLT
4292036
553-HX6101FNLTTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 250
Packaging Quantity Unit Price Ext Price
1 350.000 ₫ 350.000 ₫
350.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
250
350.000 ₫
87.500.000 ₫
500
338.000 ₫
169.000.000 ₫
750
332.000 ₫
249.000.000 ₫
MOQ 250 · Order multiple 250
