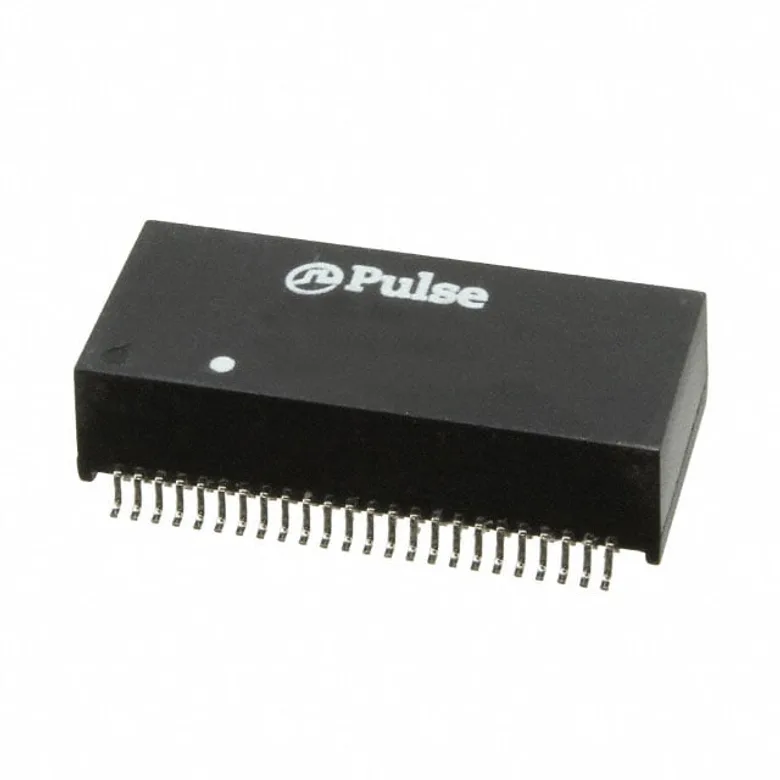

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics HX6101NLT
Manufacturer
Manufacturer Product Number
HX6101NLT
Description
PULSE XFMR 1CT:1CT TX/RX
Manufacturer Standard Lead Time Contact us
Detailed Description
120µH, 350µH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
-40°C ~ 85°C
Transformer Type
LAN 10/100/1000 Base-T
Turns Ratio - Primary:Secondary
1CT:1CT Transmitter, 1CT:1CT Receiver
ET (Volt-Time)
-
Size / Dimension
1.095" L x 0.480" W (27.81mm x 12.19mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.285" (7.24mm)
Inductance
120µH, 350µH
Weight
-
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
HX6101NLT
15291611
553-HX6101NLTCT-ND
553-HX6101NLTDKR-ND
553-HX6101NLTTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 340
Packaging Quantity Unit Price Ext Price
1 432.000 ₫ 432.000 ₫
432.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
432.000 ₫
432.000 ₫
10
390.000 ₫
3.900.000 ₫
25
374.000 ₫
9.350.000 ₫
50
362.000 ₫
18.100.000 ₫
100
351.000 ₫
35.100.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
432.000 ₫
432.000 ₫
10
390.000 ₫
3.900.000 ₫
25
374.000 ₫
9.350.000 ₫
50
362.000 ₫
18.100.000 ₫
100
351.000 ₫
35.100.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
250
336.000 ₫
84.000.000 ₫
500
325.000 ₫
162.500.000 ₫
750
319.000 ₫
239.250.000 ₫
MOQ 250 · Order multiple 250
