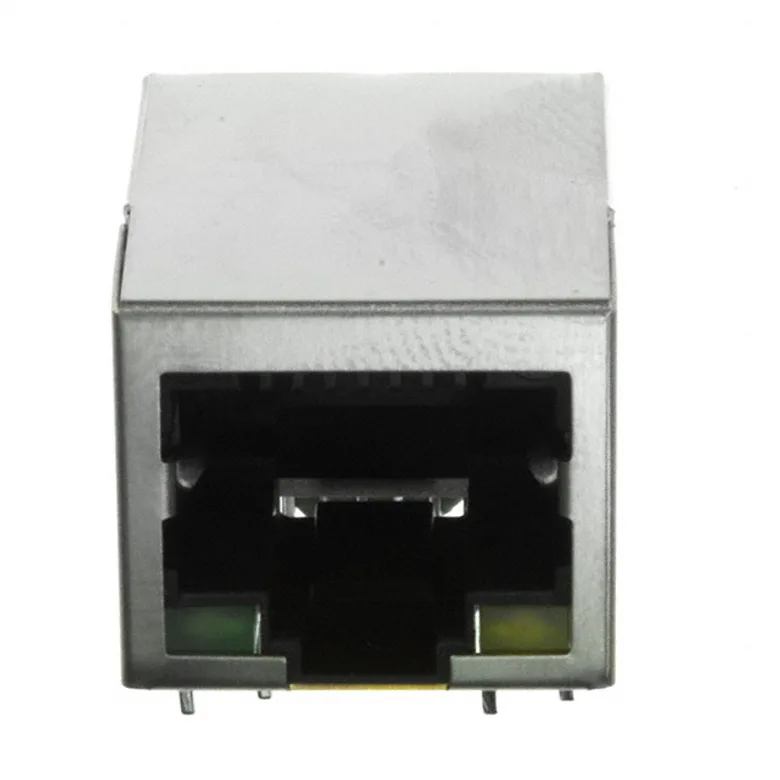

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Pulse Electronics J0026D01BNL
Manufacturer
Manufacturer Product Number
J0026D01BNL
Description
CONN JACK 1PORT PCB
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN JACK 1PORT PCB
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Pulse Electronics
Operating Temperature
0°C ~ 70°C
Connector Type
RJ45
Contact Finish
Gold
Applications
10/100 Base-TX
Features
Board Guide
Termination
Solder
LED Color
Green - Yellow
Mounting Type
Through Hole
Number of Cores per Jack
5
Height Above Board
0.545" (13.84mm)
Tab Direction
Down
Shielding
Shielded
Contact Finish Thickness
15.0µin (0.38µm)
Housing Material
Thermoplastic
Shield Material
Brass
Contact Material
Phosphor Bronze
Orientation
90° Angle (Right)
Number of Ports
1
Number of Rows
1
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Interactive Media
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
J0026D01BNL
1036893
553-1486-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 461
Packaging Quantity Unit Price Ext Price
1 230.000 ₫ 230.000 ₫
230.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
230.000 ₫
230.000 ₫
10
195.000 ₫
1.950.000 ₫
30
181.000 ₫
5.430.000 ₫
60
172.000 ₫
10.320.000 ₫
120
164.000 ₫
19.680.000 ₫
270
155.000 ₫
41.850.000 ₫
510
148.000 ₫
75.480.000 ₫
1,020
141.000 ₫
143.820.000 ₫
MOQ 1 · Order multiple 1
